LC 1610-KP:M8330
LC 1610-KP:M8330

LC 1610-KP:M8330

UGC DOR7637607
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.46 CAD - $61.46 CAD
$61.46 CAD
$61.46 CAD - $61.46 CAD
$61.46 CAD

Vendu en lots de : 10

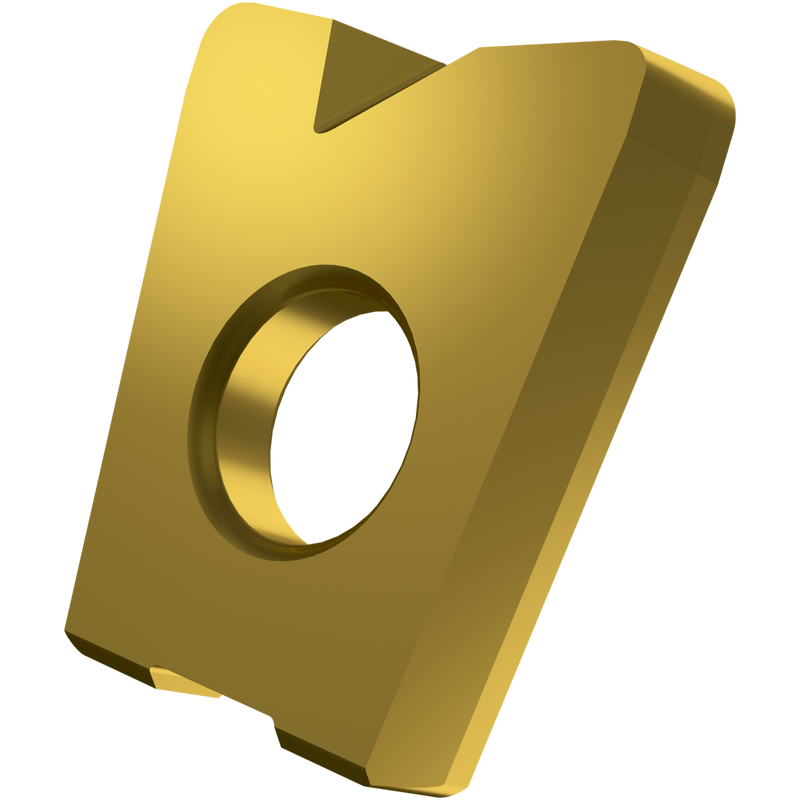

Insert de fraisage à copier toroïdal avec un diamètre de 15,999 mm et des rayons de coin de 1,001 mm pour une profondeur de coupe maximale de 1,001 mm, géométrie KP et carbure WC-Co à grain fin avec revêtement PVD M8330 dans les plages de grades ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à copier K2-SLC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 1610-KP:M8330
GradeM8330
Chipbreaker (CBMD)PC
Product Number7637607
Product FamilyCL

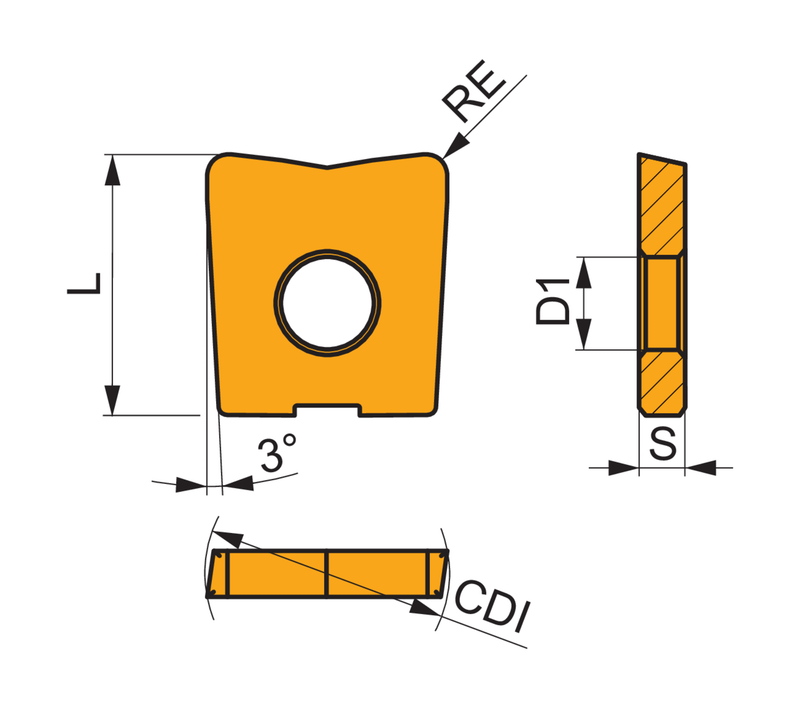

Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7637607
EAN3603603538290
File Type Download
LC 1610-KP:M8330 — Line Drawing PDF Download
