CR 12:M8330
CR 12:M8330

CR 12:M8330

UGC DOR7637788
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.60 CAD - $51.60 CAD
$51.60 CAD
$51.60 CAD - $51.60 CAD
$51.60 CAD

Vendu en lots de : 10

Plaquette fraise boule à copier d'un diamètre de 12 mm pour une profondeur de coupe maximale de 1,2 mm, en carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 12:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7637788
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Depth of Cut Max — in (APMX)0.047"
Depth of Cut Max — mm (APMX)1.2 mm
Tool Information
Reference Numbers
EDP Number7637788
EAN3603603538511
File Type Download

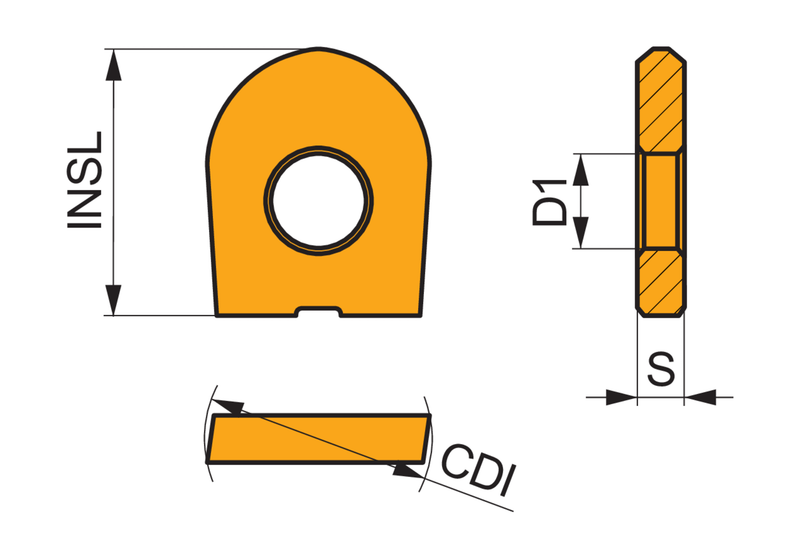

CR 12:M8330 — Line Drawing PDF Download
