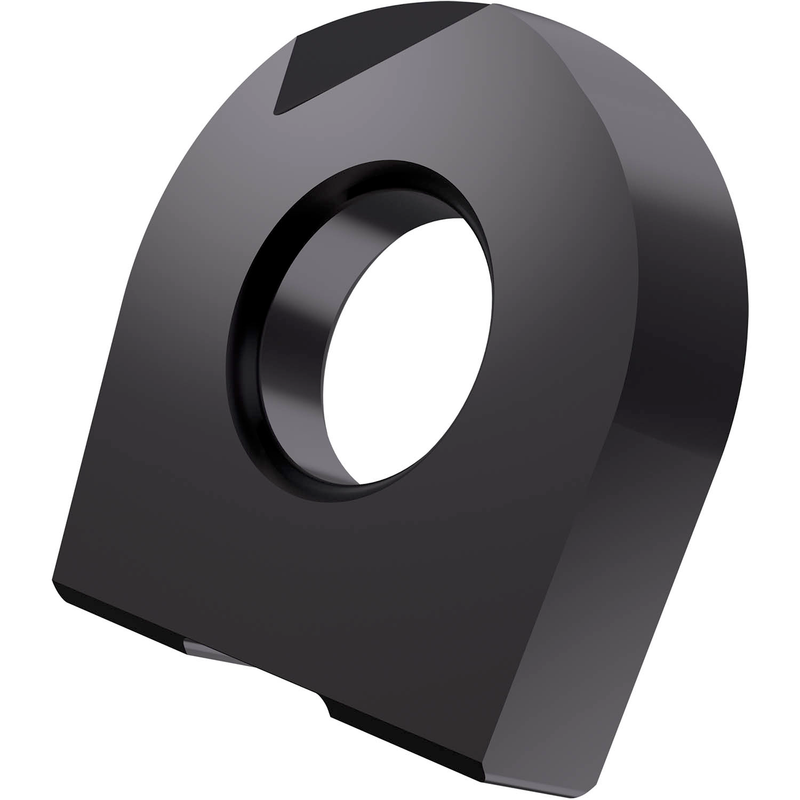

CR 16:M4310
CR 16:M4310

CR 16:M4310

UGC DOR7637790
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.57 CAD - $53.57 CAD
$53.57 CAD
$53.57 CAD - $53.57 CAD
$53.57 CAD

Vendu en lots de : 10

Plaquette de fraisage à copier à bout sphérique d'un diamètre de 0,6299" pour une profondeur de coupe maximale de 0,063", carbure WC-Co à grains fins revêtu PVD M4310 dans les plages de nuances ISO K05-K15 et H05-H15 pour l'usinage de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 16:M4310
GradeM4310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7637790
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7637790
EAN3603603538535
File Type Download
CR 16:M4310 — 3D Model STP Download
CR 16:M4310 — Line Drawing PDF Download
