RC 16-F:M8330
RC 16-F:M8330

RC 16-F:M8330

UGC DOR7637793
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.74 CAD - $56.74 CAD
$56.74 CAD
$56.74 CAD - $56.74 CAD
$56.74 CAD

Vendu en lots de : 10

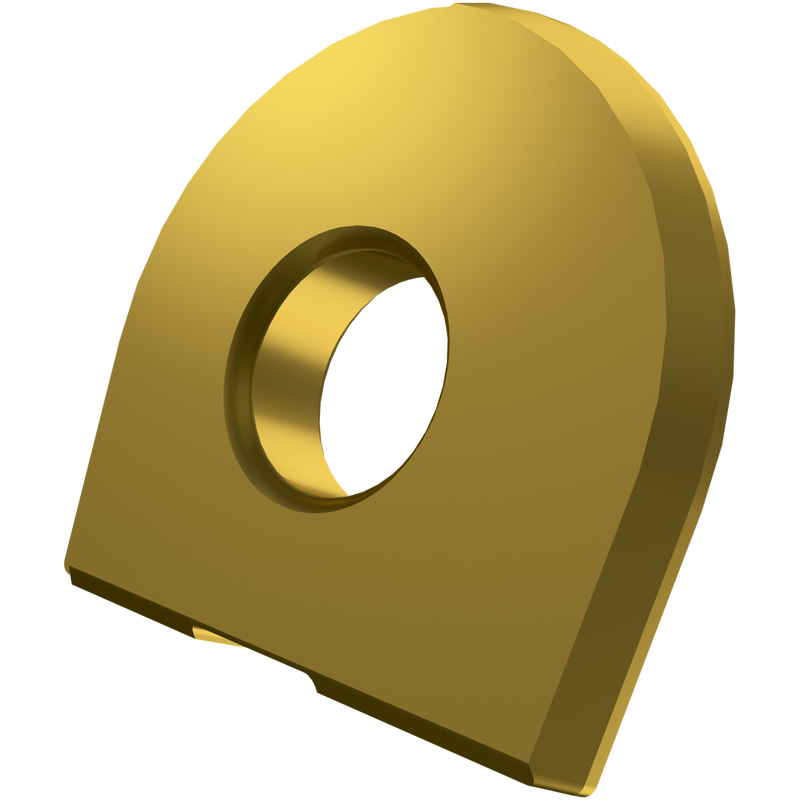

Fraise boule insert avec un diamètre de 0,6299" pour une profondeur de coupe maximale de 0,063", géométrie F et carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 16-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number7637793
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7637793
EAN3603603538566
File Type Download

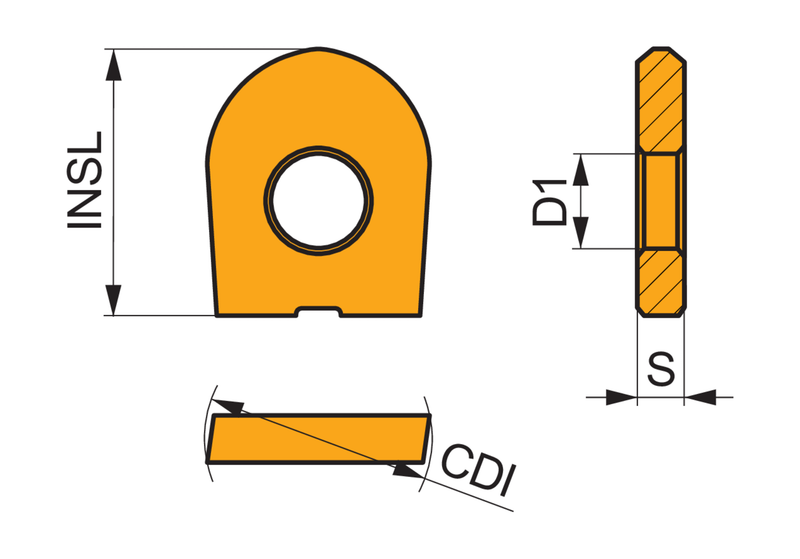

RC 16-F:M8330 — Line Drawing PDF Download
