CR 20:M8330
CR 20:M8330

CR 20:M8330

UGC DOR7637795
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.29 CAD - $61.29 CAD
$61.29 CAD
$61.29 CAD - $61.29 CAD
$61.29 CAD

Vendu en lots de : 10

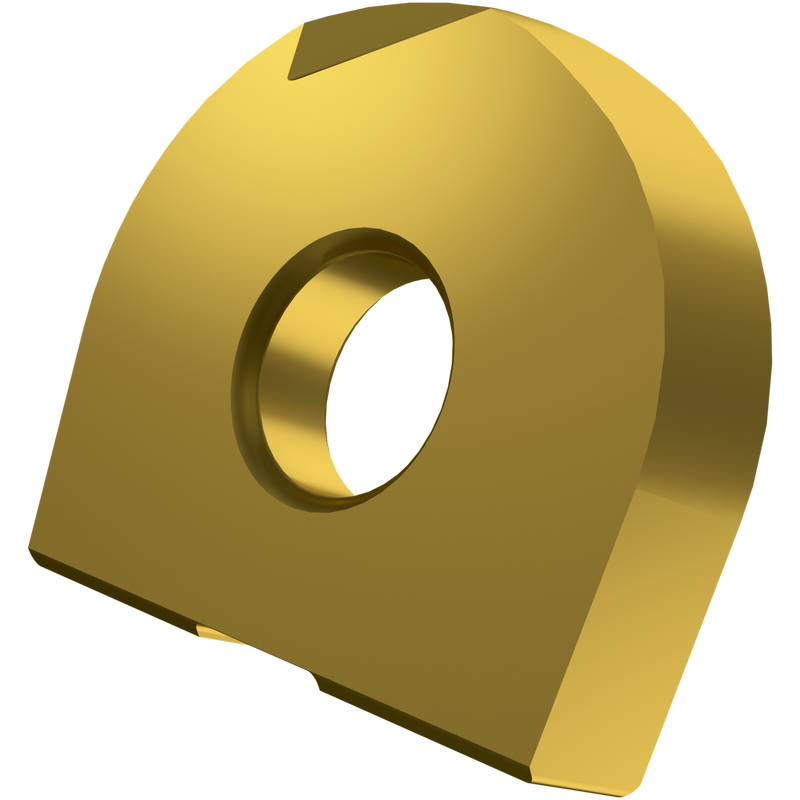

Plaquette à copier à rayon de nez de 20 mm (.7874") pour une profondeur de coupe maximale de 2 mm (.0787"), carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI)RC 20:M8330
Product Name (ISO)CR 20:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7637795
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7637795
EAN3603603538580
File Type Download
CR 20:M8330 — Line Drawing PDF Download
