RC 25:M8330
RC 25:M8330

RC 25:M8330

UGC DOR7637799
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.57 CAD - $86.57 CAD
$86.57 CAD
$86.57 CAD - $86.57 CAD
$86.57 CAD

Vendu en lots de : 10

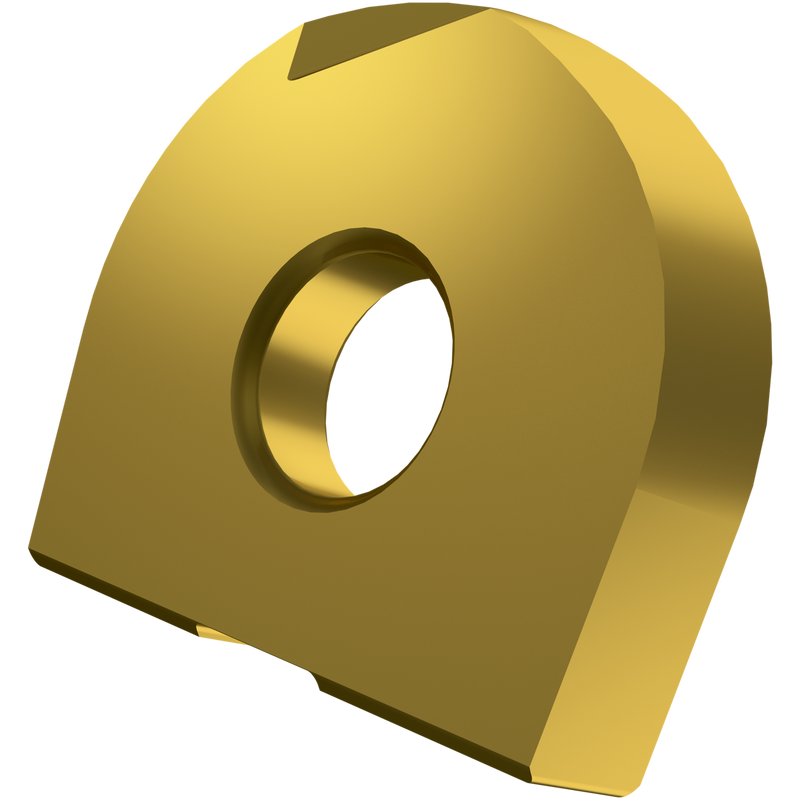

Plaquette à copier à rayon de 24,99 mm (0,9843") pour une profondeur de coupe maximale de 2,5 mm (0,0984"), carbure WC-Co à grains fins avec revêtement PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 25:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7637799
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7637799
EAN3603603538627
File Type Download
RC 25:M8330 — Line Drawing PDF Download
