RC 32:M4310
RC 32:M4310

RC 32:M4310

UGC DOR7637800
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.86 CAD - $126.86 CAD
$126.86 CAD
$126.86 CAD - $126.86 CAD
$126.86 CAD

Vendu en lots de : 5

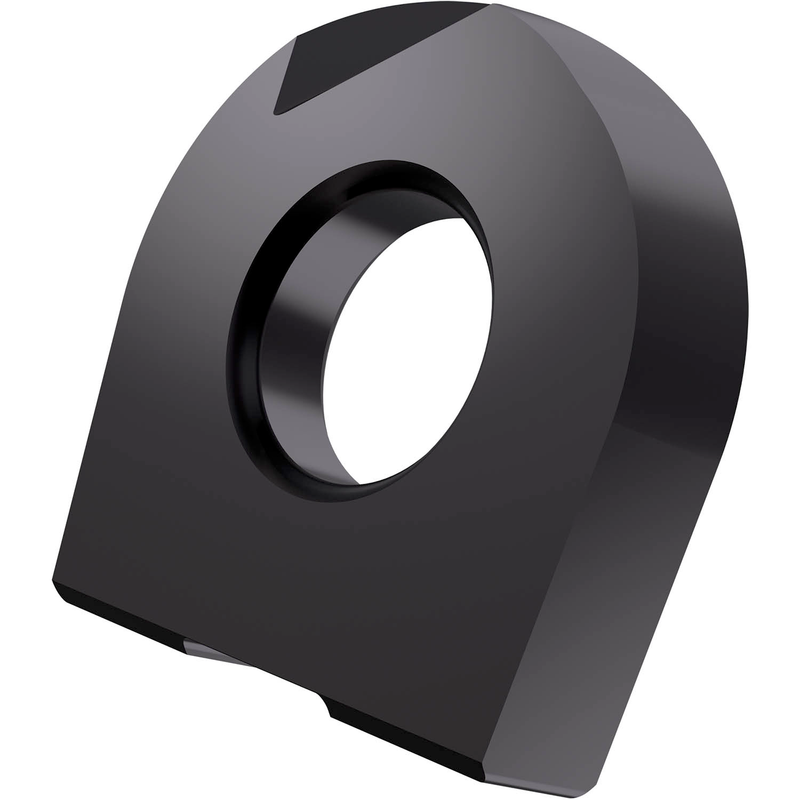

Plaquette de fraisage à copier à bout sphérique d'un diamètre de 1,2598" pour une profondeur de coupe maximale de 0,126", en carbure WC-Co à grains fins revêtu PVD M4310, de nuances ISO K05-K15 et H05-H15, pour l'usinage de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI)CR 32:M4310
Product Name (ISO)RC 32:M4310
GradeM4310
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number7637800
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Depth of Cut Max — in (APMX)0.126"
Depth of Cut Max — mm (APMX)3.2 mm
Tool Information
Reference Numbers
EDP Number7637800
EAN3603603538634
File Type Download

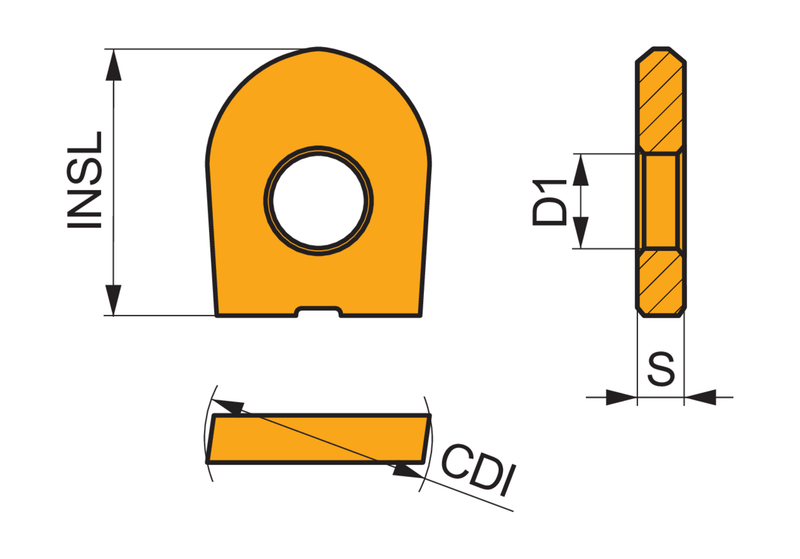

RC 32:M4310 — Line Drawing PDF Download
