WNHX 040305ER-WM:M8330
WNHX 040305ER-WM:M8330

WNHX 040305ER-WM:M8330

UGC DOR7639271
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.80 CAD - $28.80 CAD
$28.80 CAD
$28.80 CAD - $28.80 CAD
$28.80 CAD

Vendu en lots de : 10

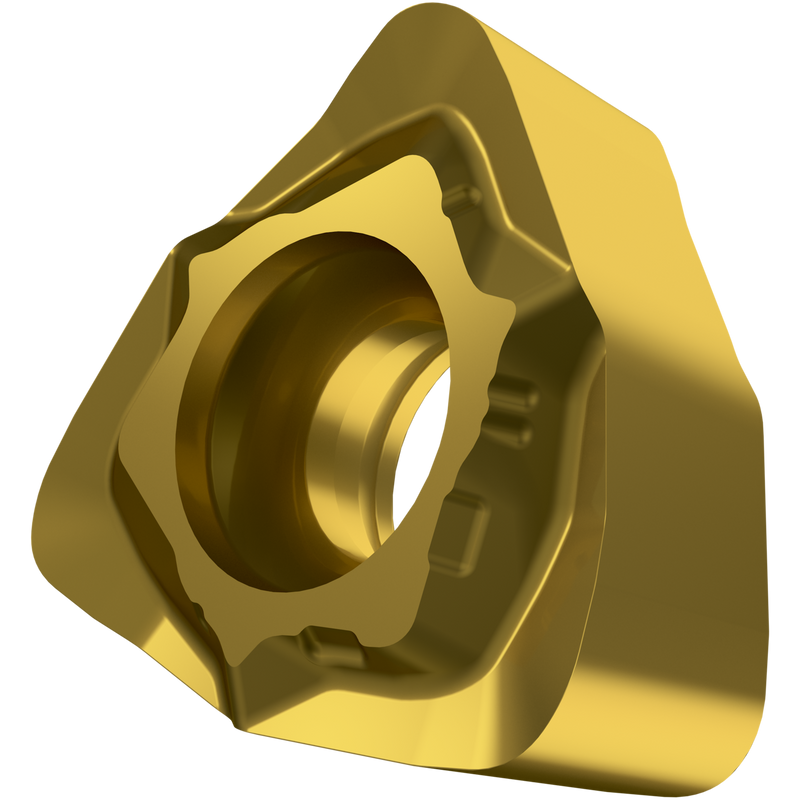

Plaquette de fraisage double face WNHX 0403, de forme trigon 80° et profil d'essuyage pour une profondeur de coupe maximale de 2 mm, avec un rayon de pointe de 0,5 mm, une précision de positionnement selon la classe de tolérance ISO-H et une géométrie WM avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330, dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à surfacer-à copier SWN04C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNHX 040305ER-WM:M8330
GradeM8330
Chipbreaker (CBMD)GE
Product Number7639271
Product FamilyWNHX 04

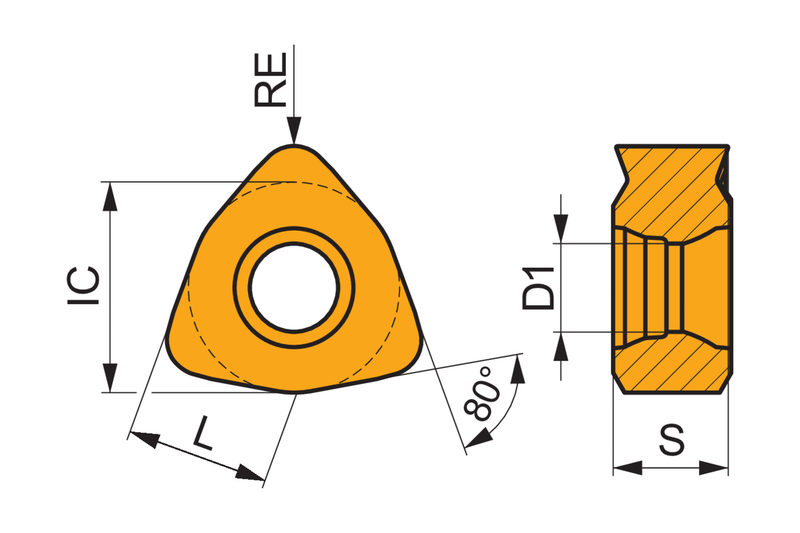

Insert Geometry
Insert DesignWNHX
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.244"
Inscribed Circle Dia. — mm (IC)6.2 mm
Insert Thickness — in (S)0.133"
Insert Thickness — mm (S)3.38 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7639271
EAN3603603537392
File Type Download
WNHX 040305ER-WM:M8330 — Line Drawing PDF Download
