WNHX 040315ER-WM:M4310
WNHX 040315ER-WM:M4310

WNHX 040315ER-WM:M4310

UGC DOR7639274
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.80 CAD - $28.80 CAD
$28.80 CAD
$28.80 CAD - $28.80 CAD
$28.80 CAD

Vendu en lots de : 10

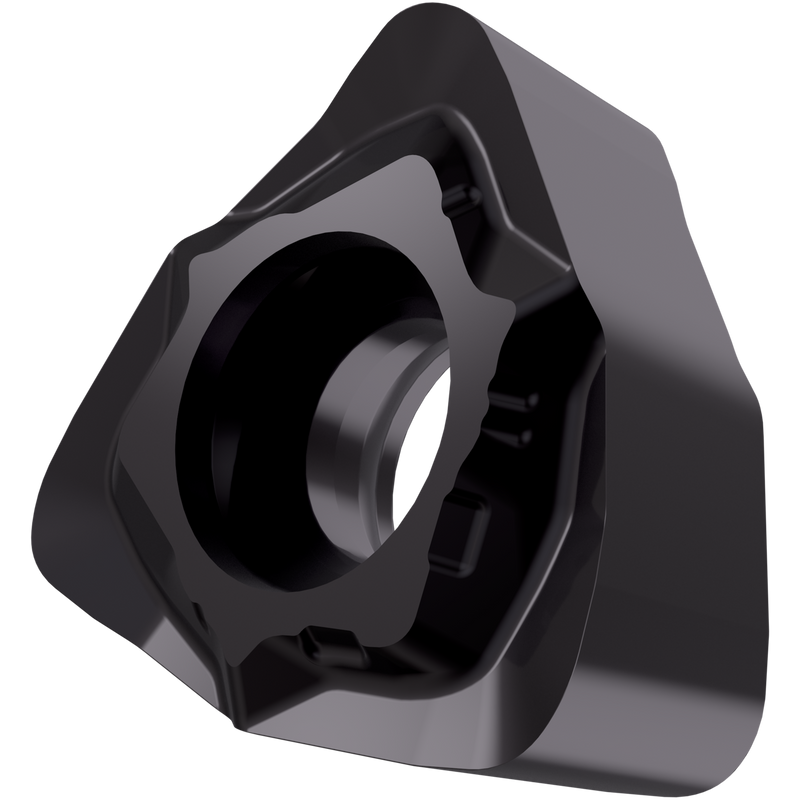

Plaquette de fraisage double face WNHX 0403, de forme trigon 80° avec facette de finition, profondeur de coupe maximale de 2 mm, rayon de coin de 1,5 mm, précision d'indexage selon la classe de tolérance ISO-H et géométrie WM avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M4310, dans les plages de nuances ISO K05-K15 et H05-H15, pour l'usinage de la fonte et de matériaux trempés avec les fraises à copier SWN04C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNHX 040315ER-WM:M4310
GradeM4310
Chipbreaker (CBMD)GE
Product Number7639274
Product FamilyWNHX 04

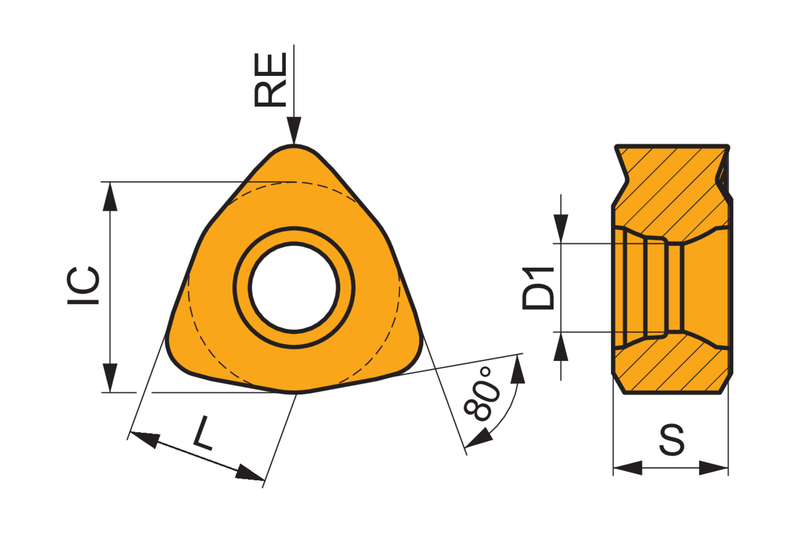

Insert Geometry
Insert DesignWNHX
Insert Shape Code (SC)W - trigonométrie
Inscribed Circle Dia. — in (IC)0.244"
Inscribed Circle Dia. — mm (IC)6.2 mm
Insert Thickness — in (S)0.133"
Insert Thickness — mm (S)3.38 mm
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7639274
EAN3603603537422
File Type Download
WNHX 040315ER-WM:M4310 — Line Drawing PDF Download
