C6001/8
C6001/8

C6001/8

UGC DOR7647759
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.84 CAD - $36.84 CAD
$36.84 CAD
$36.84 CAD - $36.84 CAD
$36.84 CAD

Vendu en lots de : 1

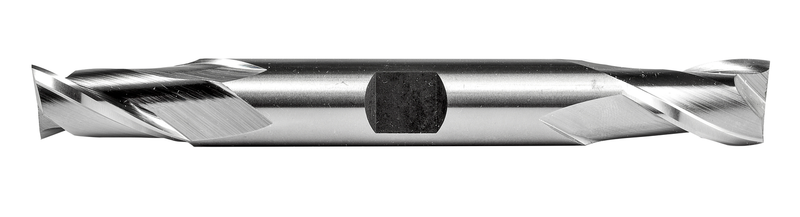

Fraise deux tailles à deux lèvres, de longueur courante, de diamètre 1/8" avec une longueur de coupe de 3/8" et une longueur totale de 3.1/16", conforme à la norme ANSI, avec une queue Weldon de 3/8", en acier rapide avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6001/8
GradeLumineux
Product Number7647759
Product FamilyC600
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm

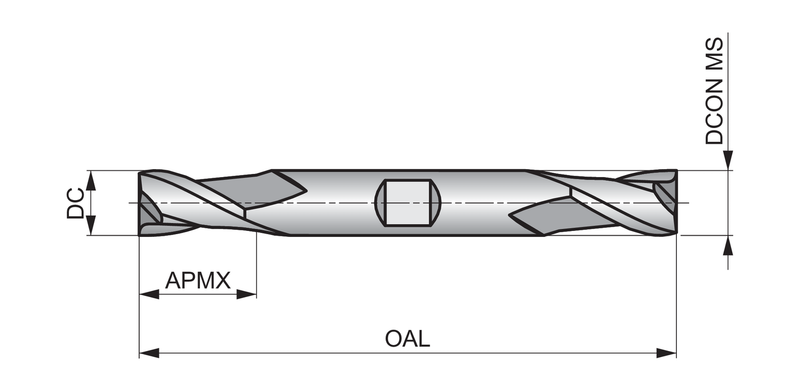

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)3.0625"
Overall Length — mm (OAL)77.79 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647759
EAN7320760843345
File Type Download
C6001/8 — Line Drawing PDF Download
