C6005/16
C6005/16

C6005/16

UGC DOR7647824
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.00 CAD - $36.00 CAD
$36.00 CAD
$36.00 CAD - $36.00 CAD
$36.00 CAD

Vendu en lots de : 1

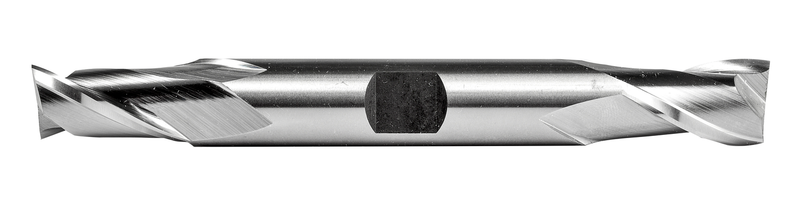

Fraise à deux extrémités de longueur standard, 2 dents, diamètre 5/16", longueur de coupe 9/16" et longueur totale 3.1/2", selon la norme ANSI avec queue Weldon 3/8", HSS avec finition brillante, hélice 30° pour le surfaçage, l'usinage de rainures et la plongée en rampe dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6005/16
GradeLumineux
Product Number7647824
Product FamilyC600
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647824
EAN7320760843390
File Type Download

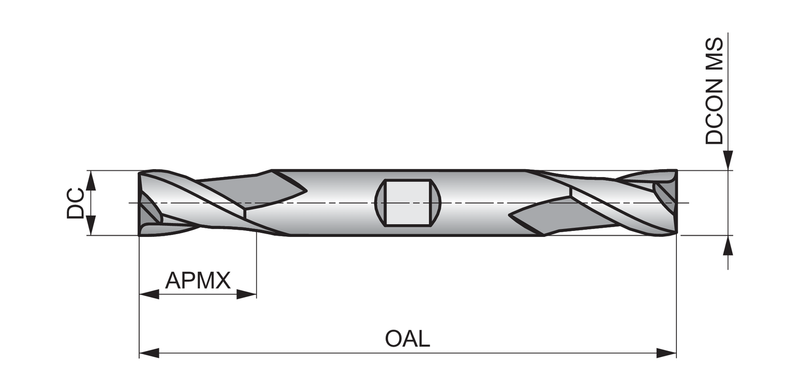

C6005/16 — Line Drawing PDF Download
