C6003/8
C6003/8

C6003/8

UGC DOR7647826
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.00 CAD - $36.00 CAD
$36.00 CAD
$36.00 CAD - $36.00 CAD
$36.00 CAD

Vendu en lots de : 1

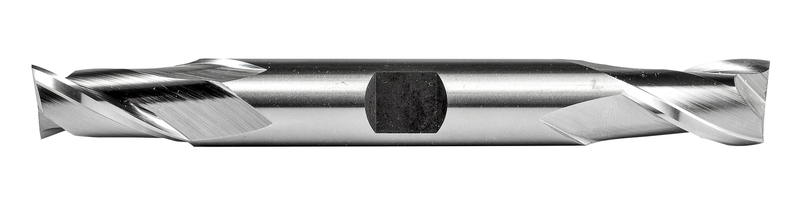

Fraise à deux taillants double-extrémité de longueur standard, diamètre 3/8" avec une longueur de coupe de 9/16" et une longueur totale de 3.1/2", selon la norme ANSI, avec une queue Weldon de 3/8", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6003/8
GradeLumineux
Product Number7647826
Product FamilyC600
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm

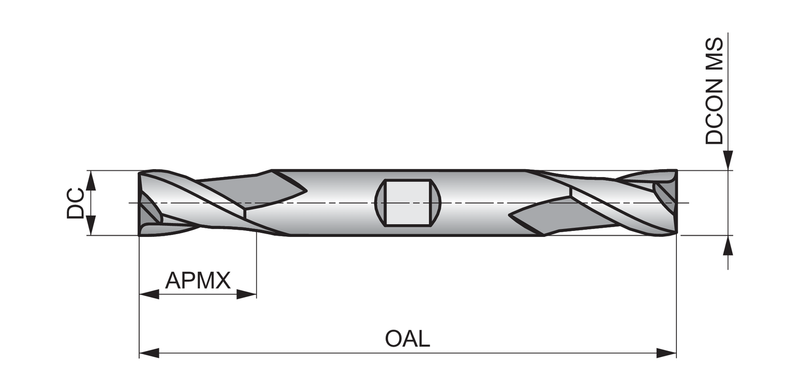

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647826
EAN7320760843413
File Type Download
C6003/8 — Line Drawing PDF Download
