C60013/32
C60013/32

C60013/32

UGC DOR7647827
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.09 CAD - $57.09 CAD
$57.09 CAD
$57.09 CAD - $57.09 CAD
$57.09 CAD

Vendu en lots de : 1

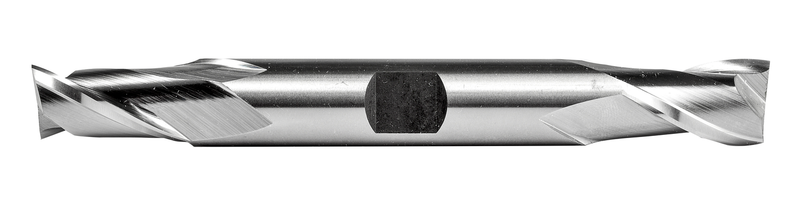

Fraise à deux taillants à double extrémité de longueur normale, diamètre 13/32" avec une longueur de coupe de 13/16" et une longueur totale de 4.1/8", conforme à la norme ANSI avec une queue Weldon de 1/2", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C60013/32
GradeLumineux
Product Number7647827
Product FamilyC600
Insert Geometry
Depth of Cut Max — mm (APMX)20.64 mm
Dimensions
Cutting Diameter — in (DC)0.4063"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647827
EAN7320760843420
File Type Download

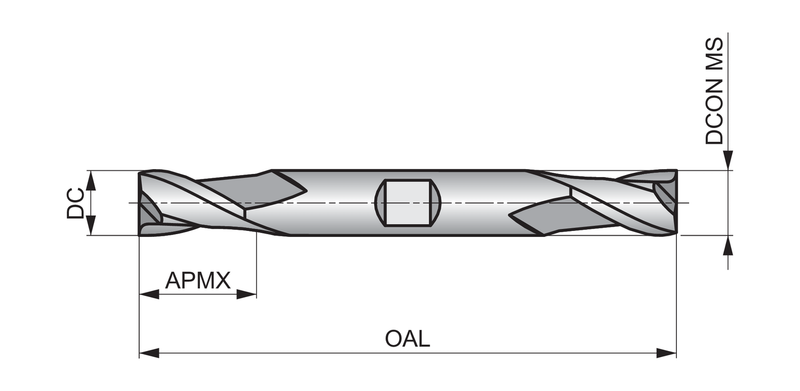

C60013/32 — Line Drawing PDF Download
