C6003/4
C6003/4

C6003/4

UGC DOR7647831
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$92.50 CAD - $92.50 CAD
$92.50 CAD
$92.50 CAD - $92.50 CAD
$92.50 CAD

Vendu en lots de : 1

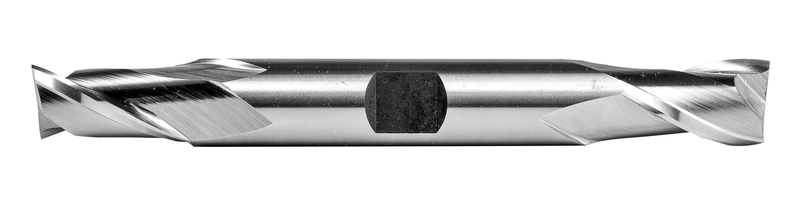

Fraise à deux taillants à double extrémité de longueur normale, de diamètre 3/4" avec une longueur de coupe de 1.5/16" et une longueur totale de 5.5/8", conforme à la norme ANSI avec une queue Weldon de 3/4", en acier rapide avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6003/4
GradeLumineux
Product Number7647831
Product FamilyC600
Insert Geometry
Depth of Cut Max — mm (APMX)33.34 mm

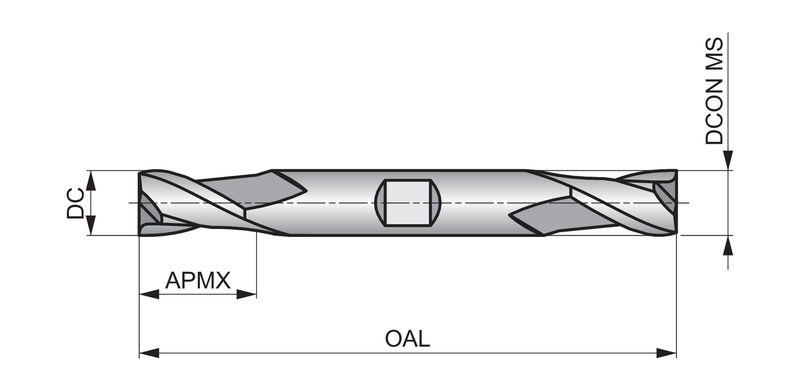

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)5.625"
Overall Length — mm (OAL)142.88 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647831
EAN7320760843468
File Type Download
C6003/4 — Line Drawing PDF Download
