C6011/4X3/8
C6011/4X3/8

C6011/4X3/8

UGC DOR7647834
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.66 CAD - $25.66 CAD
$25.66 CAD
$25.66 CAD - $25.66 CAD
$25.66 CAD

Vendu en lots de : 1

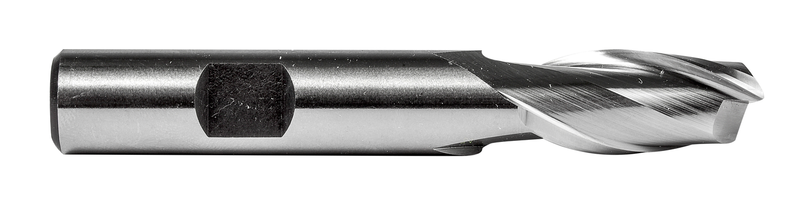

Fraise en bout de longueur normale à 2 arêtes, diamètre de 1/4" avec une longueur de coupe de 1/2" et une longueur totale de 2.7/16", conforme à la norme ANSI, avec une queue Weldon de 3/8", en HSS avec finition brillante, hélice à 30° pour le fraisage en plongée, le fraisage de rainures et le fraisage en ramping dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011/4X3/8
GradeLumineux
Product Number7647834
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — mm (OAL)61.91 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647834
EAN7320760843499
File Type Download

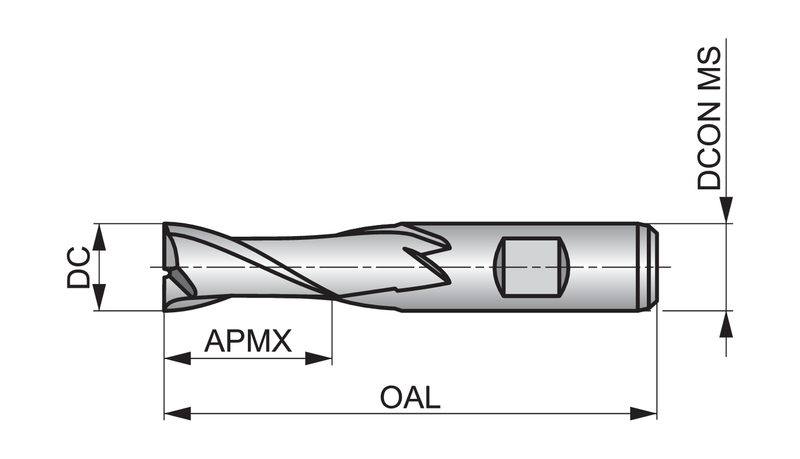

C6011/4X3/8 — Line Drawing PDF Download
