C6013/8X3/8
C6013/8X3/8

C6013/8X3/8

UGC DOR7647836
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.66 CAD - $25.66 CAD
$25.66 CAD
$25.66 CAD - $25.66 CAD
$25.66 CAD

Vendu en lots de : 1

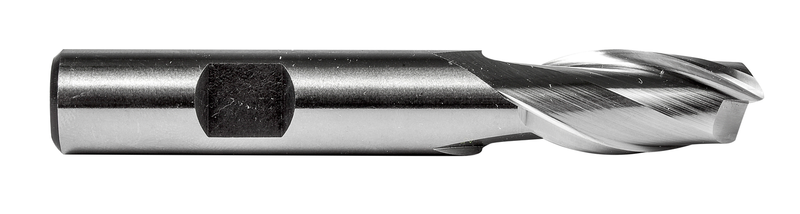

Fraise en bout de longueur standard à 2 arêtes, diamètre 3/8" avec longueur de coupe de 9/16" et longueur totale de 2.1/2", conforme à la norme ANSI avec queue Weldon de 3/8", HSS finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6013/8X3/8
GradeLumineux
Product Number7647836
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647836
EAN7320760843512
File Type Download
C6013/8X3/8 — Line Drawing PDF Download
