C6017/16X3/8
C6017/16X3/8

C6017/16X3/8

UGC DOR7647837
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.21 CAD - $37.21 CAD
$37.21 CAD
$37.21 CAD - $37.21 CAD
$37.21 CAD

Vendu en lots de : 1

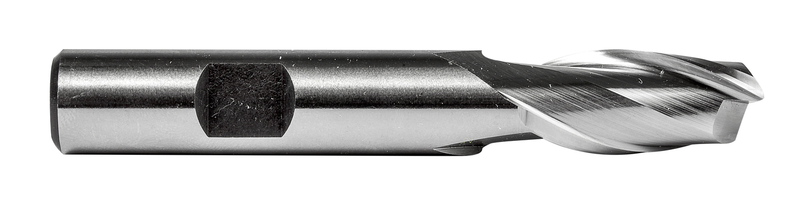

Fraise en bout de longueur standard à 2 arêtes de coupe, diamètre 7/16" avec une longueur de coupe de 13/16" et une longueur hors tout de 2.11/16", conforme à la norme ANSI avec queue Weldon de 3/8", en HSS avec finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6017/16X3/8
GradeLumineux
Product Number7647837
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)20.64 mm
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — mm (OAL)68.26 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647837
EAN7320760843529
File Type Download
C6017/16X3/8 — Line Drawing PDF Download
