C6011/2X1/2
C6011/2X1/2

C6011/2X1/2

UGC DOR7647839
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.43 CAD - $39.43 CAD
$39.43 CAD
$39.43 CAD - $39.43 CAD
$39.43 CAD

Vendu en lots de : 1

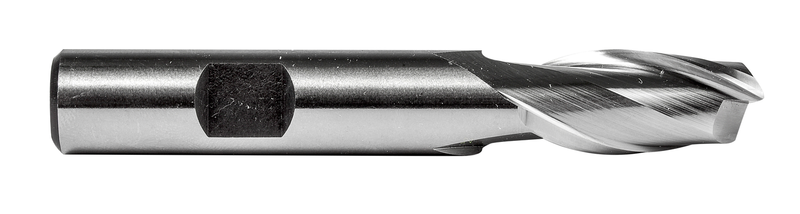

Fraise en bout de longueur standard à 2 arêtes, diamètre 1/2" avec une longueur de coupe de 1" et une longueur totale de 3,1/4", conforme à la norme ANSI, avec queue Weldon de 1/2", en HSS avec finition brillante, hélice de 30° pour le surfaçage à l'épaulement, l'usinage de rainures et la coupe en ramping dans les aciers à usinabilité améliorée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011/2X1/2
GradeLumineux
Product Number7647839
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm

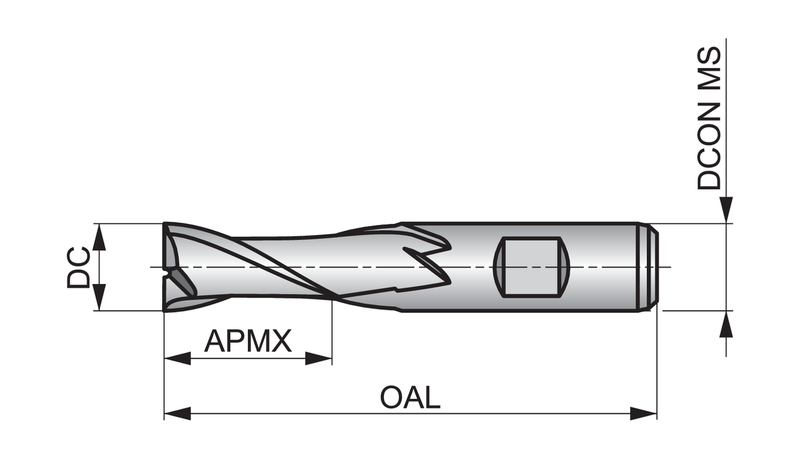

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — mm (OAL)82.55 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647839
EAN7320760843543
File Type Download
C6011/2X1/2 — Line Drawing PDF Download
