C6019/16X1/2
C6019/16X1/2

C6019/16X1/2

UGC DOR7647840
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.83 CAD - $46.83 CAD
$46.83 CAD
$46.83 CAD - $46.83 CAD
$46.83 CAD

Vendu en lots de : 1

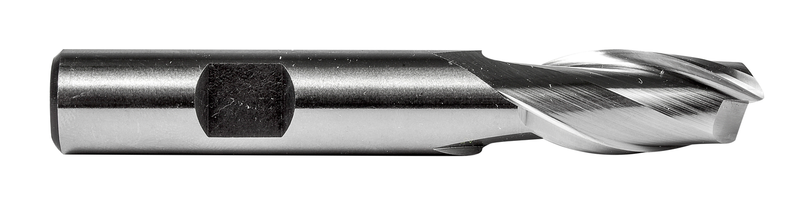

Fraise en bout de longueur standard à 2 arêtes de coupe, diamètre 9/16" avec une longueur de coupe de 1.1/8" et une longueur totale de 3.3/8", conforme à la norme ANSI avec une queue Weldon de 1/2", HSS avec finition brillante, hélice à 30° pour le surfaçage d'épaulement, l'usinage de rainures et l'usinage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6019/16X1/2
GradeLumineux
Product Number7647840
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — mm (OAL)85.73 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647840
EAN7320760843550
File Type Download
C6019/16X1/2 — Line Drawing PDF Download
