C6015/8X1/2
C6015/8X1/2

C6015/8X1/2

UGC DOR7647841
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.39 CAD - $52.39 CAD
$52.39 CAD
$52.39 CAD - $52.39 CAD
$52.39 CAD

Vendu en lots de : 1

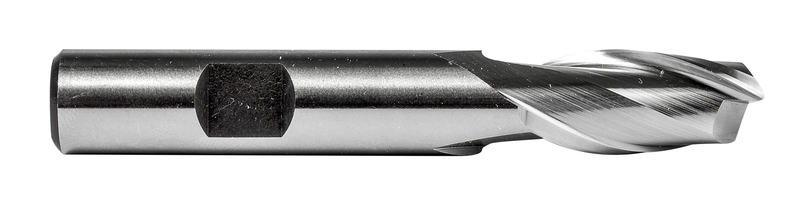

Fraise en bout de longueur standard, 2 dents, diamètre 5/8", longueur de coupe 1.1/8" et longueur totale 3.3/8", selon la norme ANSI, avec une queue Weldon de 1/2", en HSS, finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6015/8X1/2
GradeLumineux
Product Number7647841
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — mm (OAL)85.73 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647841
EAN7320760843567
File Type Download

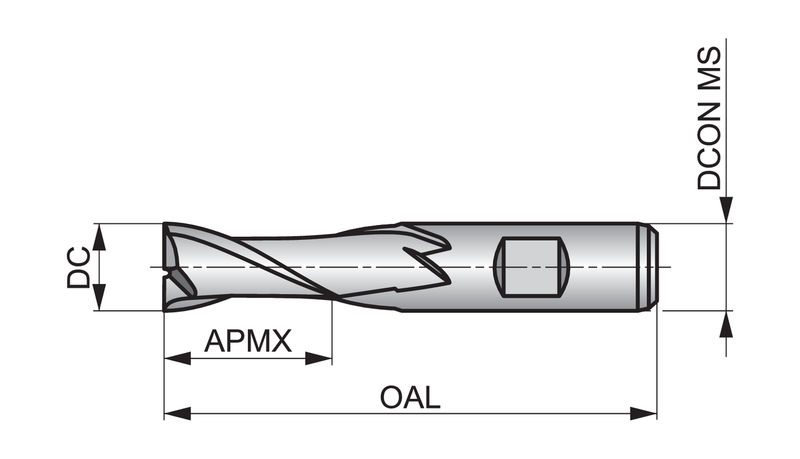

C6015/8X1/2 — Line Drawing PDF Download
