C6013/4X1/2
C6013/4X1/2

C6013/4X1/2

UGC DOR7647843
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.26 CAD - $60.26 CAD
$60.26 CAD
$60.26 CAD - $60.26 CAD
$60.26 CAD

Vendu en lots de : 1

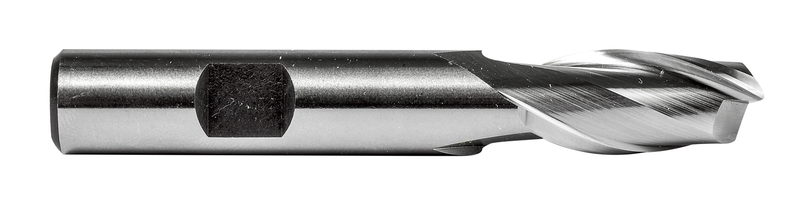

Fraise en bout de longueur standard à 2 dents, diamètre 3/4" avec longueur de coupe de 1.5/16" et longueur totale de 3.5/8", selon la norme ANSI avec une queue Weldon de 1/2", HSS avec finition brillante, hélice à 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6013/4X1/2
GradeLumineux
Product Number7647843
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)33.34 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — mm (OAL)92.08 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647843
EAN7320760843581
File Type Download

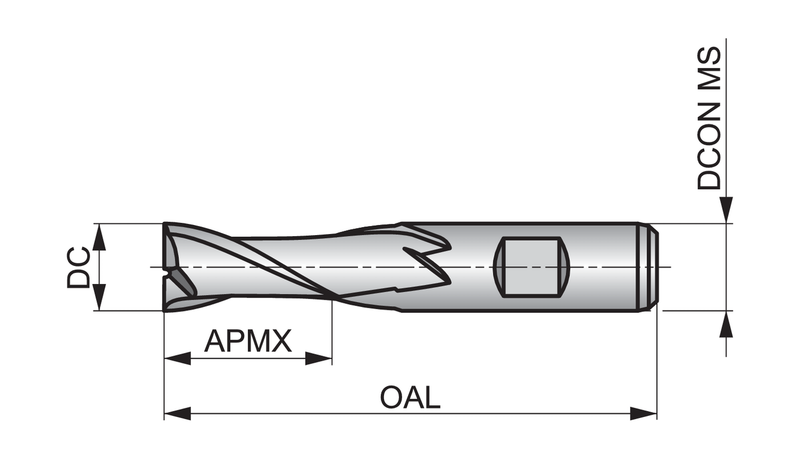

C6013/4X1/2 — Line Drawing PDF Download
