C6013/4X5/8
C6013/4X5/8

C6013/4X5/8

UGC DOR7647846
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.26 CAD - $60.26 CAD
$60.26 CAD
$60.26 CAD - $60.26 CAD
$60.26 CAD

Vendu en lots de : 1

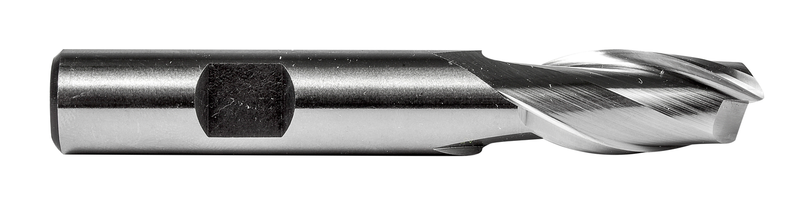

Fraise en bout de longueur standard, 2 dents, diamètre 3/4" avec une longueur de coupe de 1.5/16" et une longueur totale de 3.3/4", conforme à la norme ANSI avec une queue Weldon de 5/8", HSS avec finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6013/4X5/8
GradeLumineux
Product Number7647846
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)33.34 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — mm (OAL)95.25 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647846
EAN7320760843611
File Type Download
C6013/4X5/8 — Line Drawing PDF Download
