C60113/16X5/8
C60113/16X5/8

C60113/16X5/8

UGC DOR7647847
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.89 CAD - $71.89 CAD
$71.89 CAD
$71.89 CAD - $71.89 CAD
$71.89 CAD

Vendu en lots de : 1

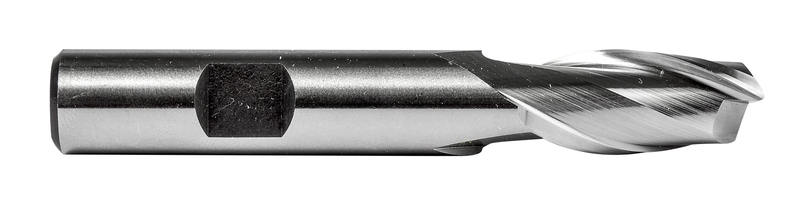

Fraise à deux dents, longueur normale, diamètre 13/16", avec longueur de coupe 1.1/2" et longueur totale 4", conforme à la norme ANSI, avec queue Weldon 5/8", en HSS avec finition brillante, hélice à 30° pour fraisage d'épaulements, rainurage et fraisage en plongée dans les aciers à usinage facile

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C60113/16X5/8
GradeLumineux
Product Number7647847
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.8125"
Cutting Diameter — mm (DC)20.64 mm
Cutting Diameter — Fractional13/16
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647847
EAN7320760843628
File Type Download
C60113/16X5/8 — Line Drawing PDF Download
