C6017/8X5/8
C6017/8X5/8

C6017/8X5/8

UGC DOR7647848
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.89 CAD - $71.89 CAD
$71.89 CAD
$71.89 CAD - $71.89 CAD
$71.89 CAD

Vendu en lots de : 1

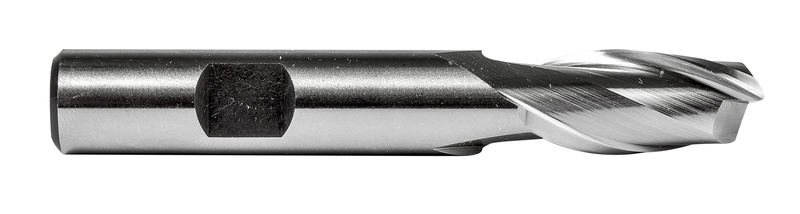

Fraise en bout de longueur normale à 2 arêtes, diamètre 7/8" avec une longueur de coupe de 1.1/2" et une longueur totale de 4", selon la norme ANSI avec une queue Weldon de 5/8", HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6017/8X5/8
GradeLumineux
Product Number7647848
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647848
EAN7320760843635
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C6017/8X5/8 — Line Drawing PDF Download
