C6011X5/8
C6011X5/8

C6011X5/8

UGC DOR7647850
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.04 CAD - $84.04 CAD
$84.04 CAD
$84.04 CAD - $84.04 CAD
$84.04 CAD

Vendu en lots de : 1

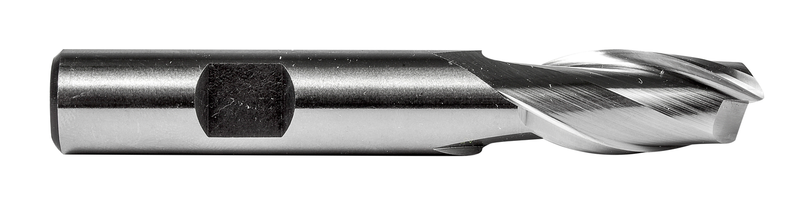

Fraise en bout de longueur standard à 2 arêtes, diamètre 1" avec longueur de coupe de 1,1/2" et longueur totale de 4", selon la norme ANSI avec une queue Weldon de 5/8", en HSS avec finition brillante, hélice de 30° pour le surfaçage à l'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011X5/8
GradeLumineux
Product Number7647850
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647850
EAN7320760843659
File Type Download

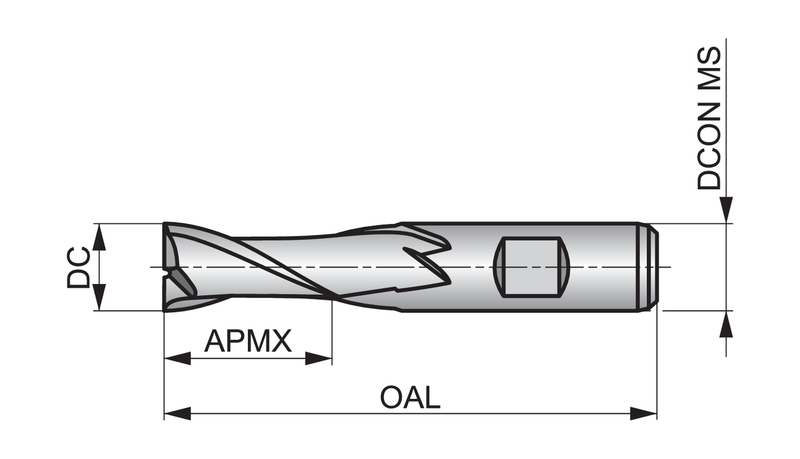

C6011X5/8 — Line Drawing PDF Download
