C6017/8X7/8
C6017/8X7/8

C6017/8X7/8

UGC DOR7647851
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.53 CAD - $74.53 CAD
$74.53 CAD
$74.53 CAD - $74.53 CAD
$74.53 CAD

Vendu en lots de : 1

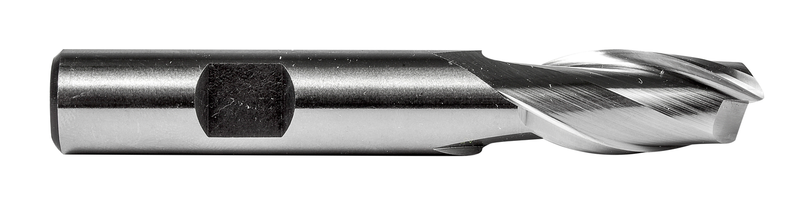

Fraise à queue de longueur standard à 2 arêtes, diamètre 7/8" avec longueur de coupe 1.1/2" et longueur totale 4.1/8", conforme à la norme ANSI avec queue Weldon 7/8", en HSS avec finition brillante, hélice à 30° pour le surfaçage d'épaulements, le rainurage et l'usinage en plongée dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6017/8X7/8
GradeLumineux
Product Number7647851
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.875"
Connection Dia. — mm (DCON)22.23 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647851
EAN7320760843666
File Type Download
C6017/8X7/8 — Line Drawing PDF Download
