C6011X1
C6011X1

C6011X1

UGC DOR7647853
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.86 CAD - $89.86 CAD
$89.86 CAD
$89.86 CAD - $89.86 CAD
$89.86 CAD

Vendu en lots de : 1

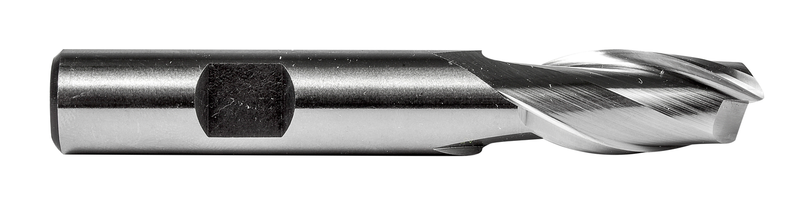

Fraise en bout de longueur standard à 2 arêtes, diamètre 1" avec une longueur de coupe de 1,5/8" et une longueur totale de 4,1/2", conforme à la norme ANSI avec une queue Weldon de 1", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011X1
GradeLumineux
Product Number7647853
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — mm (OAL)114.3 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647853
EAN7320760843680
File Type Download

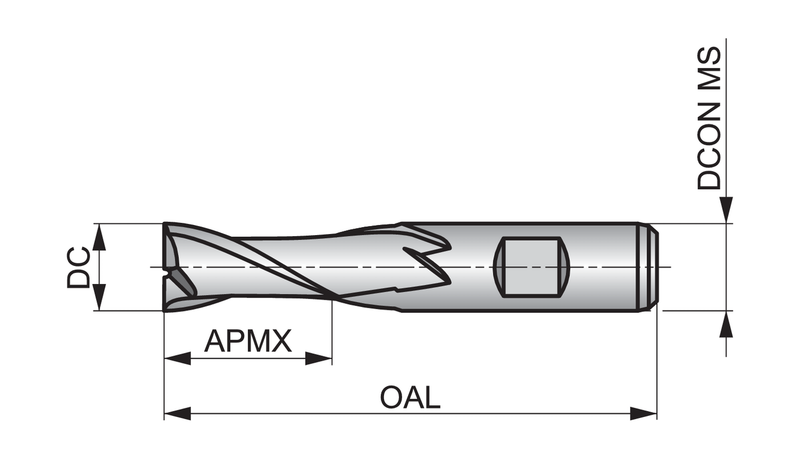

C6011X1 — Line Drawing PDF Download
