C6017/8X3/4
C6017/8X3/4

C6017/8X3/4

UGC DOR7647860
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.77 CAD - $69.77 CAD
$69.77 CAD
$69.77 CAD - $69.77 CAD
$69.77 CAD

Vendu en lots de : 1

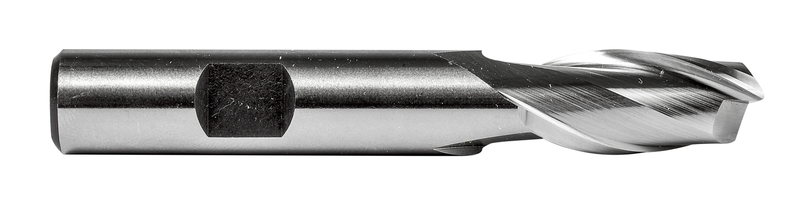

Fraise en bout de longueur standard à 2 arêtes, diamètre 7/8" avec une longueur de coupe de 1.1/2" et une longueur totale de 4.1/8", conforme à la norme ANSI avec une queue Weldon de 3/4", en HSS finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6017/8X3/4
GradeLumineux
Product Number7647860
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647860
EAN7320760843758
File Type Download
C6017/8X3/4 — Line Drawing PDF Download
