C6011X3/4
C6011X3/4

C6011X3/4

UGC DOR7647861
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.46 CAD - $82.46 CAD
$82.46 CAD
$82.46 CAD - $82.46 CAD
$82.46 CAD

Vendu en lots de : 1

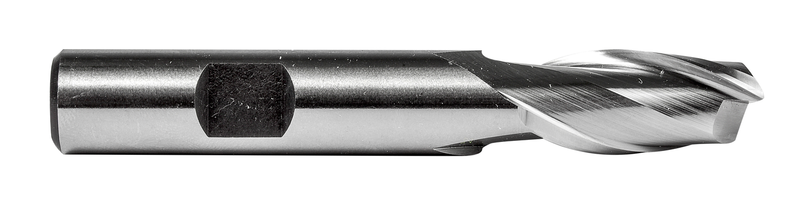

Fraise en bout de longueur standard à 2 arêtes, diamètre 1" avec une longueur de coupe de 1,1/2" et une longueur totale de 4,1/8", conforme à la norme ANSI avec une queue Weldon de 3/4", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011X3/4
GradeLumineux
Product Number7647861
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647861
EAN7320760843765
File Type Download

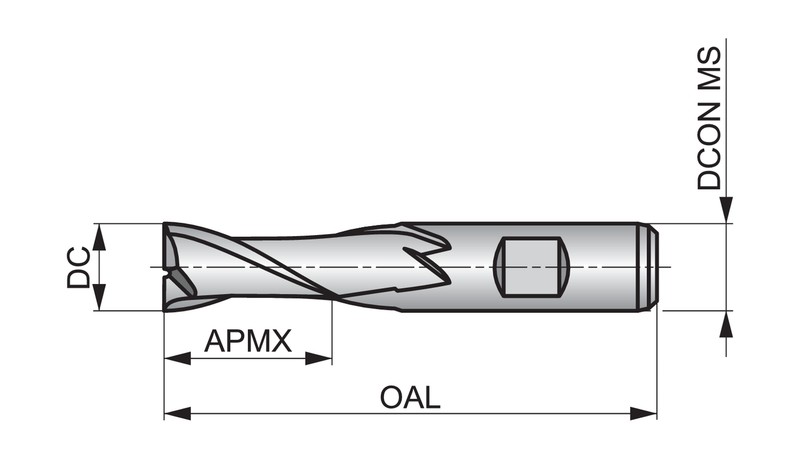

C6011X3/4 — Line Drawing PDF Download
