C6011.1/8X3/4
C6011.1/8X3/4

C6011.1/8X3/4

UGC DOR7647862
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$129.50 CAD - $129.50 CAD
$129.50 CAD
$129.50 CAD - $129.50 CAD
$129.50 CAD

Vendu en lots de : 1

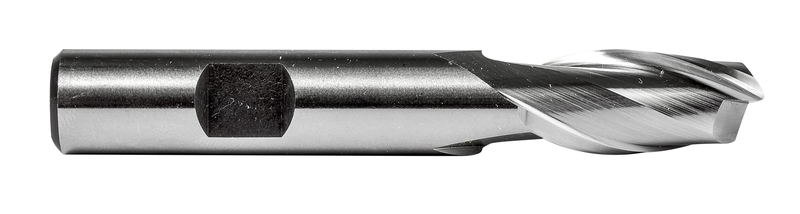

Fraise en bout de longueur standard à 2 arêtes, diamètre 1.1/8" avec une longueur de coupe de 1.5/8" et une longueur totale de 4.1/4", conforme à la norme ANSI avec une queue Weldon de 3/4", en HSS avec finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans les aciers à usinage facile

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6011.1/8X3/4
GradeLumineux
Product Number7647862
Product FamilyC601
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm

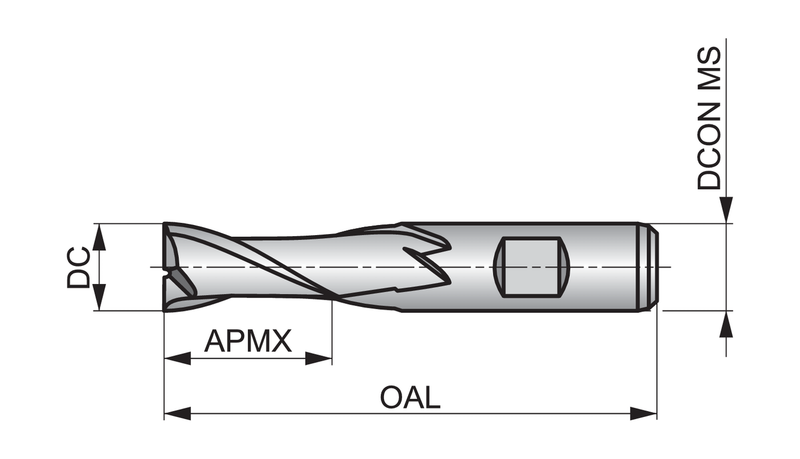

Dimensions
Cutting Diameter — in (DC)1.125"
Cutting Diameter — mm (DC)28.58 mm
Cutting Diameter — Fractional1,1/8
Overall Length — mm (OAL)107.95 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647862
EAN7320760843772
File Type Download
C6011.1/8X3/4 — Line Drawing PDF Download
