C6021/8
C6021/8

C6021/8

UGC DOR7647864
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.83 CAD - $33.83 CAD
$33.83 CAD
$33.83 CAD - $33.83 CAD
$33.83 CAD

Vendu en lots de : 1

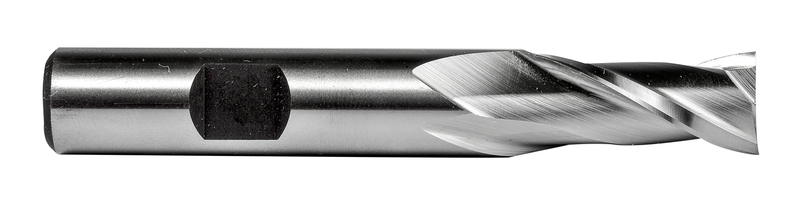

Fraise à rainurer à deux dents de longueur standard, diamètre 1/8" avec une longueur de coupe de 3/8" et une longueur totale de 2.5/16", conforme à la norme ANSI, avec une queue Weldon de 3/8", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6021/8
GradeLumineux
Product Number7647864
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.3125"
Overall Length — mm (OAL)58.74 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647864
EAN7320760843796
File Type Download

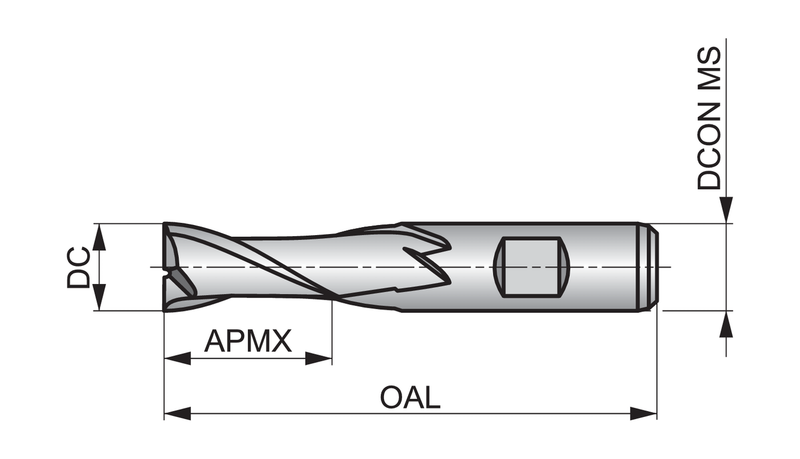

C6021/8 — Line Drawing PDF Download
