C6023/16
C6023/16

C6023/16

UGC DOR7647865
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.83 CAD - $33.83 CAD
$33.83 CAD
$33.83 CAD - $33.83 CAD
$33.83 CAD

Vendu en lots de : 1

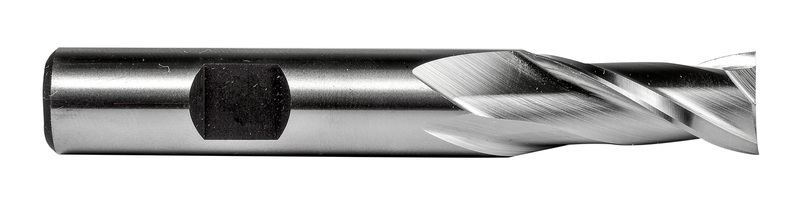

Fraise à rainurer à queue cylindrique de longueur standard avec 2 goujures, diamètre 3/16" avec une longueur de coupe de 7/16" et une longueur totale de 2.3/8", selon la norme ANSI avec une queue Weldon de 3/8", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6023/16
GradeLumineux
Product Number7647865
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)11.11 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647865
EAN7320760843802
File Type Download
C6023/16 — Line Drawing PDF Download
