C6021/4
C6021/4

C6021/4

UGC DOR7647866
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.93 CAD - $31.93 CAD
$31.93 CAD
$31.93 CAD - $31.93 CAD
$31.93 CAD

Vendu en lots de : 1

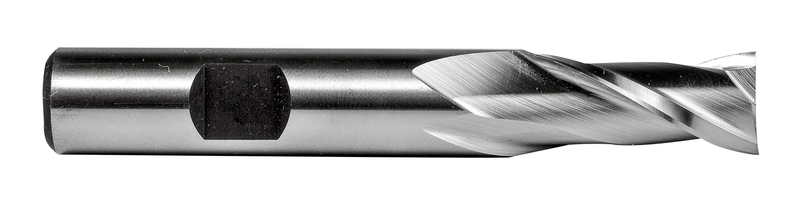

Fraise à rainurer à deux dents, de longueur régulière, diamètre 1/4" avec une longueur de coupe de 1/2" et une longueur totale de 2.7/16", conforme à la norme ANSI avec une queue Weldon de 3/8", en HSS avec finition brillante, hélice de 30° pour le surfaçage d'épaulement, l'usinage de rainures et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6021/4
GradeLumineux
Product Number7647866
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm

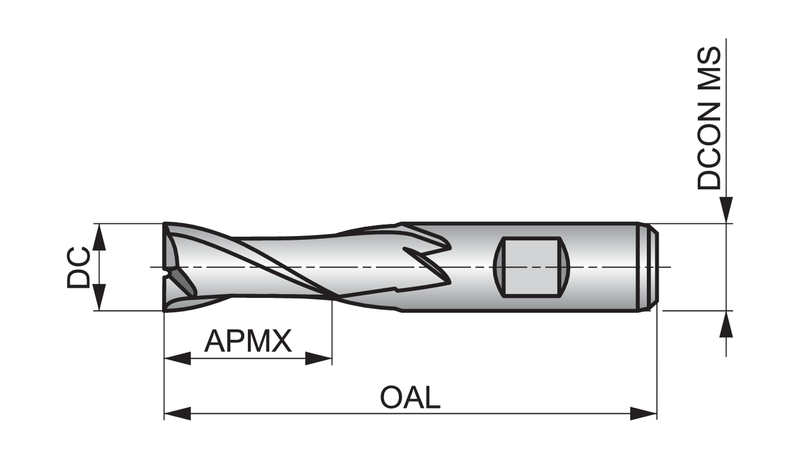

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.4375"
Overall Length — mm (OAL)61.91 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647866
EAN7320760843819
File Type Download
C6021/4 — Line Drawing PDF Download
