C6025/16
C6025/16

C6025/16

UGC DOR7647867
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.93 CAD - $31.93 CAD
$31.93 CAD
$31.93 CAD - $31.93 CAD
$31.93 CAD

Vendu en lots de : 1

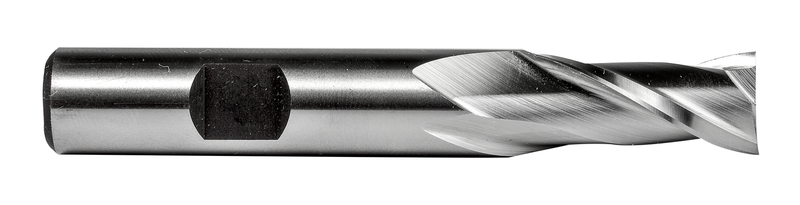

Fraise-clé à deux dents à queue régulière, diamètre 5/16", longueur de coupe 9/16" et longueur totale 2.1/2", conforme à la norme ANSI, avec queue Weldon 3/8", en HSS avec finition brillante, hélice 30° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6025/16
GradeLumineux
Product Number7647867
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647867
EAN7320760843826
File Type Download
C6025/16 — Line Drawing PDF Download
