C6023/8
C6023/8

C6023/8

UGC DOR7647868
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.93 CAD - $31.93 CAD
$31.93 CAD
$31.93 CAD - $31.93 CAD
$31.93 CAD

Vendu en lots de : 1

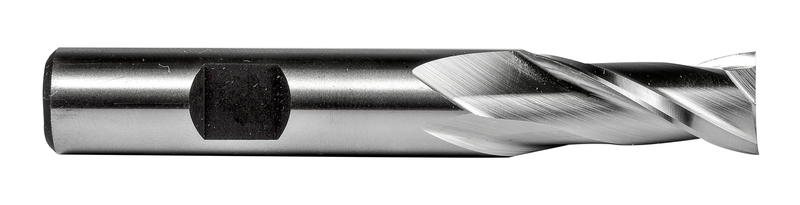

Fraise à rainurer à deux dents, longueur standard, diamètre 3/8" avec une longueur de coupe de 9/16" et une longueur totale de 2.1/2", conforme à la norme ANSI, avec une queue Weldon de 3/8", en acier rapide avec finition brillante, hélice à 30° pour le fraisage en plongée, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6023/8
GradeLumineux
Product Number7647868
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647868
EAN7320760843833
File Type Download
C6023/8 — Line Drawing PDF Download
