C6021/2
C6021/2

C6021/2

UGC DOR7647869
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.24 CAD - $45.24 CAD
$45.24 CAD
$45.24 CAD - $45.24 CAD
$45.24 CAD

Vendu en lots de : 1

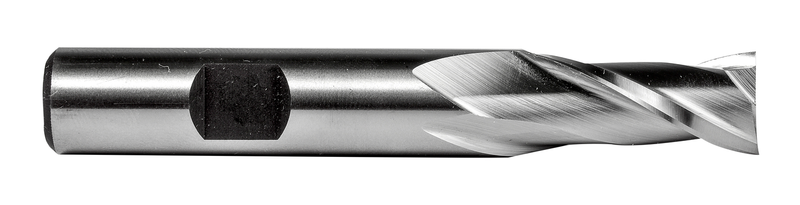

Fraise-clé à deux cannelures de longueur standard, diamètre 1/2" avec longueur de coupe de 1" et longueur totale de 3,1/4", selon la norme ANSI avec une queue Weldon de 1/2", en acier rapide avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6021/2
GradeLumineux
Product Number7647869
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647869
EAN7320760843840
File Type Download

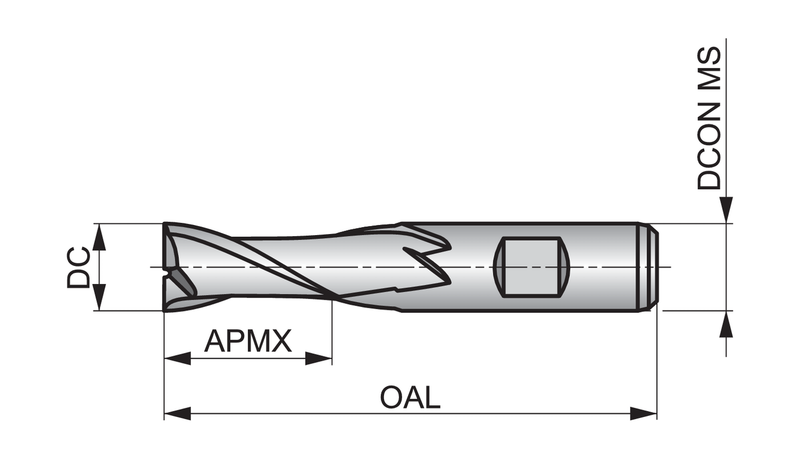

C6021/2 — Line Drawing PDF Download
