C6025/8
C6025/8

C6025/8

UGC DOR7647870
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.84 CAD - $61.84 CAD
$61.84 CAD
$61.84 CAD - $61.84 CAD
$61.84 CAD

Vendu en lots de : 1

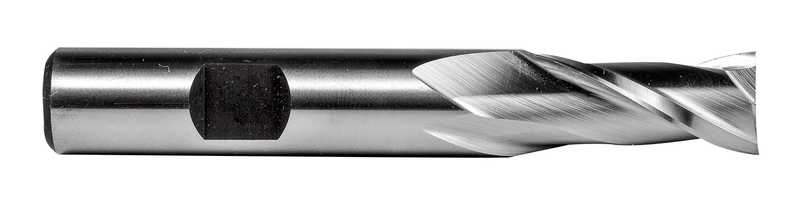

Fraise à rainurer à deux dents, longueur standard, de diamètre 5/8", avec une longueur de coupe de 1.5/16" et une longueur totale de 3.3/4", conforme à la norme ANSI, avec une queue Weldon de 5/8", en HSS finition brillante, hélice à 30° pour le surfaçage, le rainurage et l'usinage en plongée dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6025/8
GradeLumineux
Product Number7647870
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)33.34 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647870
EAN7320760843857
File Type Download
C6025/8 — Line Drawing PDF Download
