C6023/4
C6023/4

C6023/4

UGC DOR7647871
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.77 CAD - $69.77 CAD
$69.77 CAD
$69.77 CAD - $69.77 CAD
$69.77 CAD

Vendu en lots de : 1

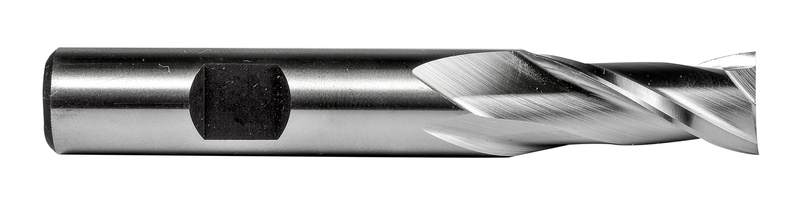

Fraise à rainurer à deux dents, de longueur standard, diamètre 3/4" avec longueur de coupe de 1.5/16" et longueur totale de 3.7/8", conforme à la norme ANSI, avec une queue Weldon de 3/4", en HSS avec finition brillante, hélice à 30° pour le surfaçage d'épaulement, l'usinage de rainures et l'usinage en plongée dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6023/4
GradeLumineux
Product Number7647871
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)33.34 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647871
EAN7320760843864
File Type Download
C6023/4 — Line Drawing PDF Download
