C6027/8
C6027/8

C6027/8

UGC DOR7647872
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.80 CAD - $88.80 CAD
$88.80 CAD
$88.80 CAD - $88.80 CAD
$88.80 CAD

Vendu en lots de : 1

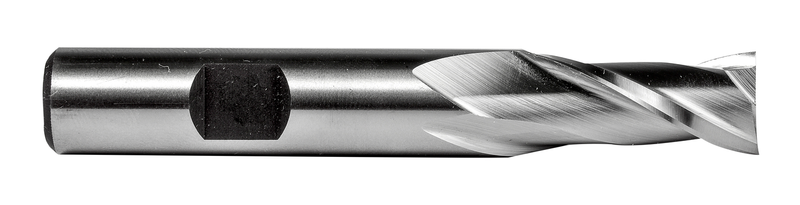

Fraise à rainurer à deux dents, longueur standard, de diamètre 7/8" avec une longueur de coupe de 1.1/2" et une longueur totale de 4.1/8", conforme à la norme ANSI, avec un queue Weldon de 7/8", en acier rapide avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en pente dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6027/8
GradeLumineux
Product Number7647872
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.875"
Connection Dia. — mm (DCON)22.23 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647872
EAN7320760843871
File Type Download

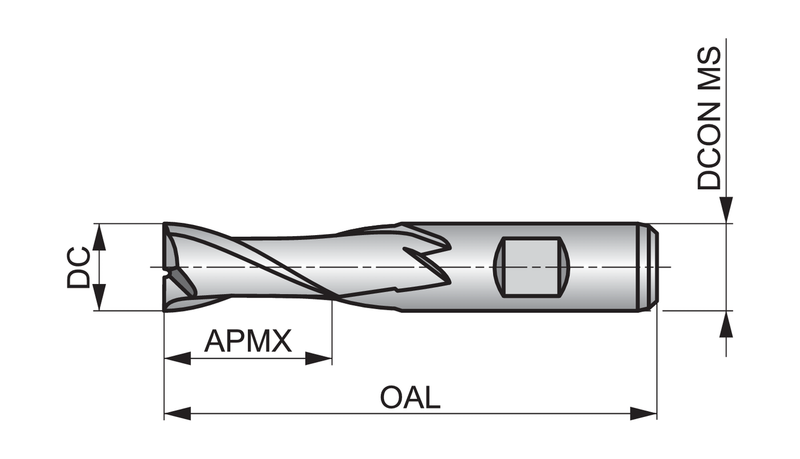

C6027/8 — Line Drawing PDF Download
