C6021
C6021

C6021

UGC DOR7647873
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.41 CAD - $109.41 CAD
$109.41 CAD
$109.41 CAD - $109.41 CAD
$109.41 CAD

Vendu en lots de : 1

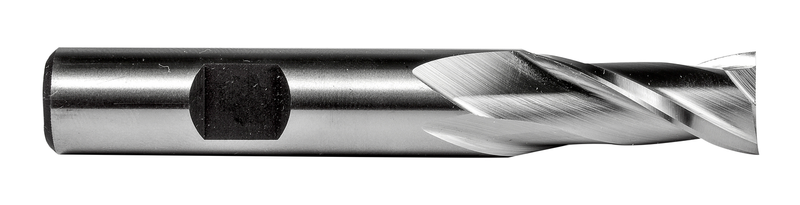

Fraise à rainure de clavette longueur normale à 2 arêtes de coupe, diamètre 1" avec une longueur de coupe de 1,5/8" et une longueur totale de 4,1/2", conforme à la norme ANSI, avec queue Weldon 1", en HSS à finition brillante, hélice à 30° pour le fraisage en plongée, le rainurage et le fraisage en rampe dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6021
GradeLumineux
Product Number7647873
Product FamilyC602
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647873
EAN7320760843888
File Type Download
C6021 — Line Drawing PDF Download
