C6093/8
C6093/8

C6093/8

UGC DOR7647929
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.53 CAD - $74.53 CAD
$74.53 CAD
$74.53 CAD - $74.53 CAD
$74.53 CAD

Vendu en lots de : 1

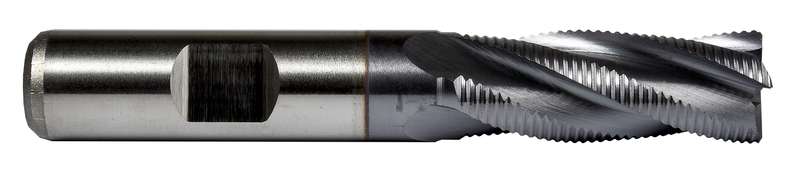

Fraise d'ébauche de longueur normale avec profil HR à pas fin normal et 4 goujures, diamètre 3/8" avec longueur de coupe de 3/4" et longueur totale de 2.1/2", selon la norme ANSI avec une queue Weldon de 3/8", HSS-E à base de cobalt avec revêtement TiCN, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage et l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6093/8
GradeTiCN
Product Number7647929
Product FamilyC609
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647929
EAN7320760844441
File Type Download

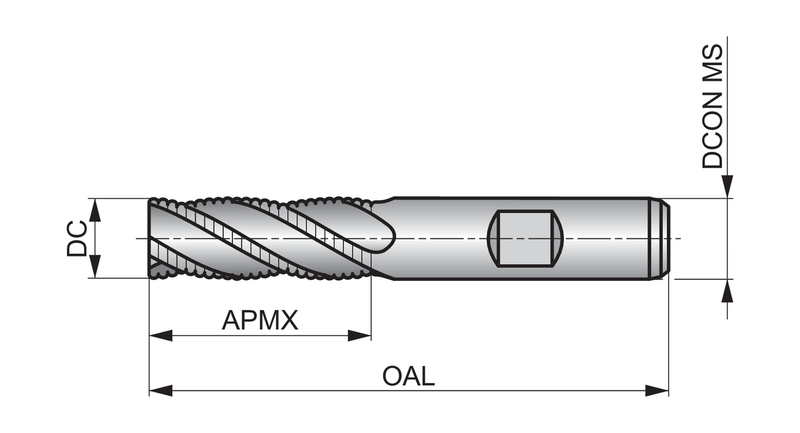

C6093/8 — Line Drawing PDF Download
