C6091/2
C6091/2

C6091/2

UGC DOR7647931
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.19 CAD - $105.19 CAD
$105.19 CAD
$105.19 CAD - $105.19 CAD
$105.19 CAD

Vendu en lots de : 1

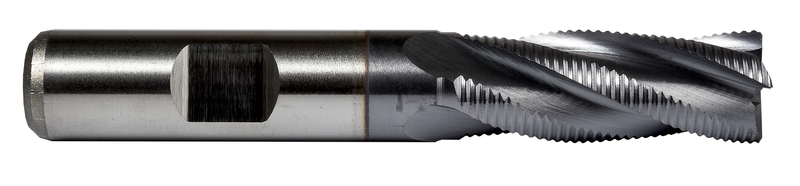

Fraise d'ébauche de longueur standard avec profil HR à pas fin standard et 4 dents, diamètre 1/2" avec longueur de coupe de 1.1/4" et longueur totale de 3.1/4", selon la norme ANSI avec un attachement Weldon de 1/2", HSS-E à base de cobalt avec revêtement TiCN, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6091/2
GradeTiCN
Product Number7647931
Product FamilyC609

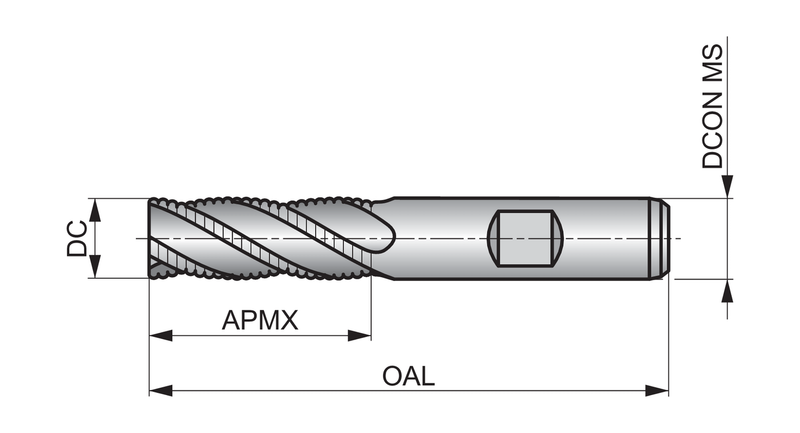

Insert Geometry
Depth of Cut Max — mm (APMX)31.75 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647931
EAN7320760844465
File Type Download
C6091/2 — Line Drawing PDF Download
