C6145/16
C6145/16

C6145/16

UGC DOR7647968
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.99 CAD - $46.99 CAD
$46.99 CAD
$46.99 CAD - $46.99 CAD
$46.99 CAD

Vendu en lots de : 1

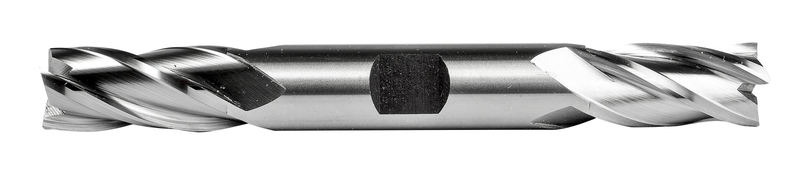

Fraise en bout à double extrémité de longueur normale avec 4 goujures, diamètre 5/16" avec une longueur de coupe de 3/4" et une longueur totale de 3,1/2", selon la norme ANSI avec une queue Weldon de 3/8", HSS avec finition brillante, hélice à 30° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en acier à usinage libre et en acier au carbone ordinaire et en cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6145/16
GradeLumineux
Product Number7647968
Product FamilyC614
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm

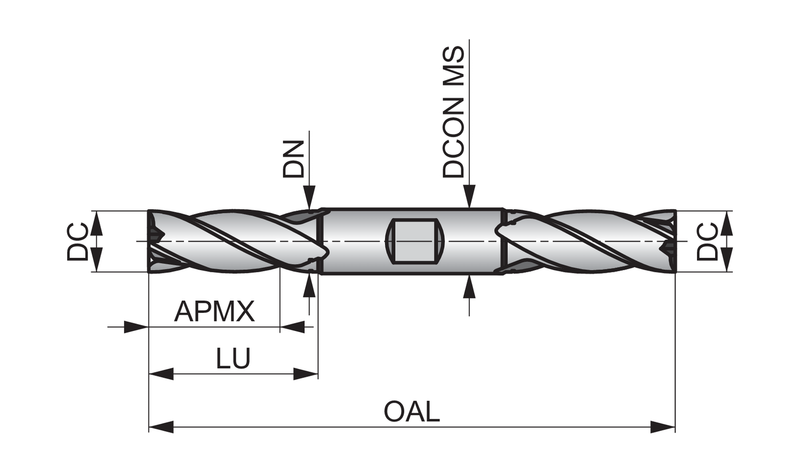

Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647968
EAN7320760844830
File Type Download
C6145/16 — Line Drawing PDF Download
