C6143/8
C6143/8

C6143/8

UGC DOR7647969
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.99 CAD - $46.99 CAD
$46.99 CAD
$46.99 CAD - $46.99 CAD
$46.99 CAD

Vendu en lots de : 1

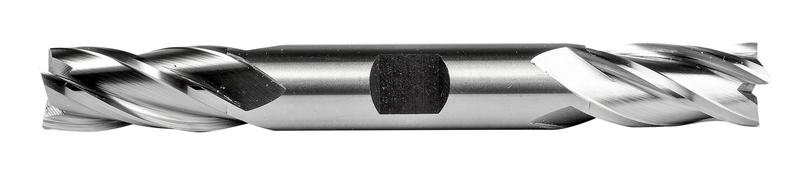

Fraise en bout à double extrémité de longueur normale avec 4 dents, diamètre 3/8" avec une longueur de coupe de 3/4" et une longueur totale de 3.1/2", selon la norme ANSI avec une queue Weldon de 3/8", HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en rampe dans l'acier au carbone et l'acier doux à usinage facile, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6143/8
GradeLumineux
Product Number7647969
Product FamilyC614

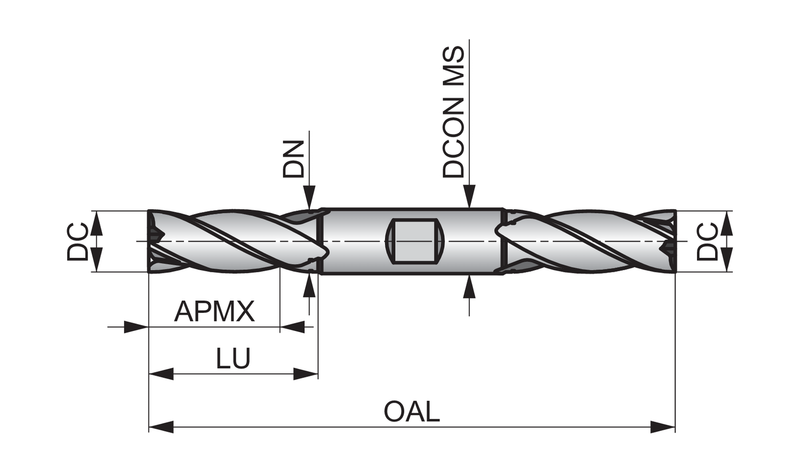

Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647969
EAN7320760844847
File Type Download
C6143/8 — Line Drawing PDF Download
