C6141/2
C6141/2

C6141/2

UGC DOR7647970
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

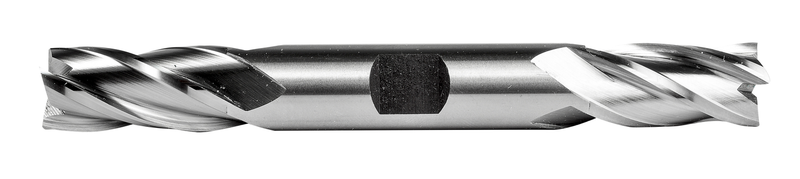

Fraise à quatre dents, double extrémité et de longueur normale, d'un diamètre de 1/2 po, d'une longueur de coupe de 1 po et d'une longueur hors tout de 4 1/8 po, conforme à la norme ANSI, avec queue Weldon de 1/2 po, en HSS avec finition brillante, hélice à 30° pour le surfaçage d'épaulements, le fraisage de rainures et le fraisage en plongée hélicoïdale dans l'acier au carbone à usinabilité améliorée et l'acier au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6141/2
GradeLumineux
Product Number7647970
Product FamilyC614
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm

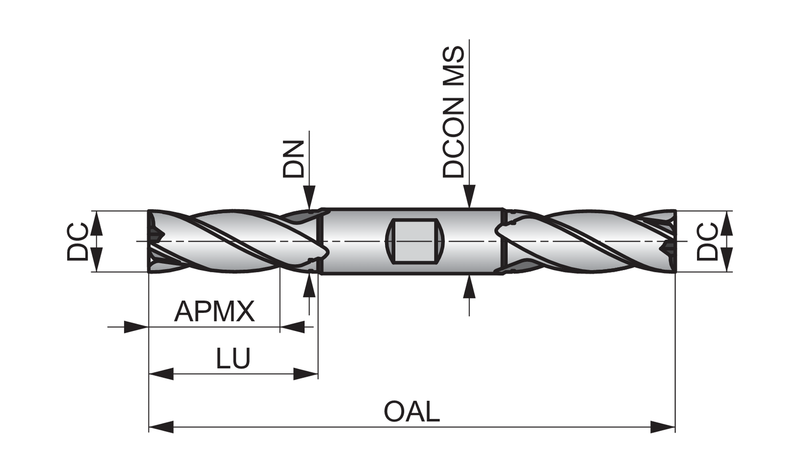

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.125"
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647970
EAN7320760844854
File Type Download
C6141/2 — Line Drawing PDF Download
