C6155/16
C6155/16

C6155/16

UGC DOR7647976
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.16 CAD - $35.16 CAD
$35.16 CAD
$35.16 CAD - $35.16 CAD
$35.16 CAD

Vendu en lots de : 1

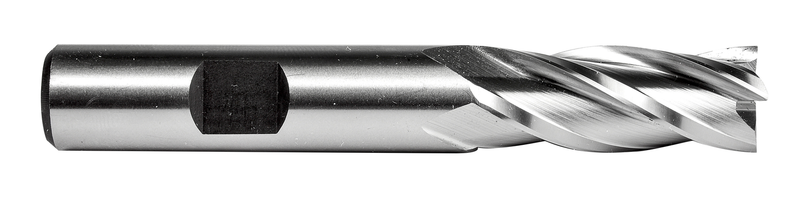

Fraise en bout de longueur normale à 4 cannelures, diamètre 5/16" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", conforme à la norme ANSI avec une queue Weldon de 3/8", HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage et l'acier au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6155/16
GradeLumineux
Product Number7647976
Product FamilyC615

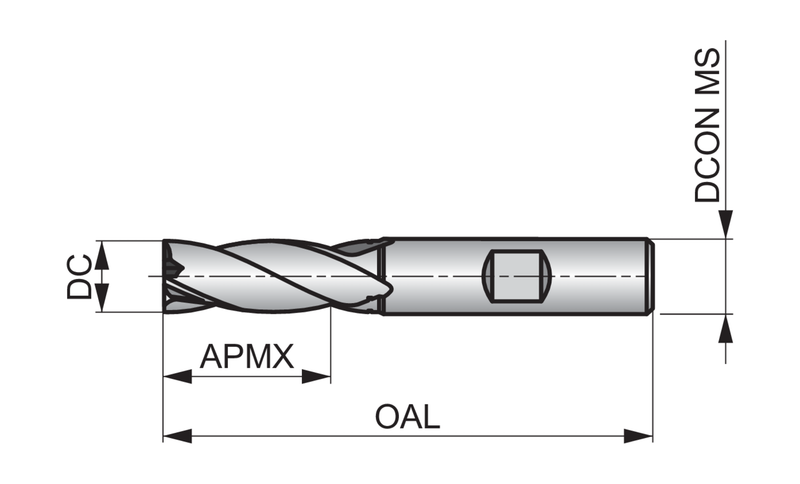

Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647976
EAN7320760844915
File Type Download
C6155/16 — Line Drawing PDF Download
