C6153/8
C6153/8

C6153/8

UGC DOR7647977
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.21 CAD - $37.21 CAD
$37.21 CAD
$37.21 CAD - $37.21 CAD
$37.21 CAD

Vendu en lots de : 1

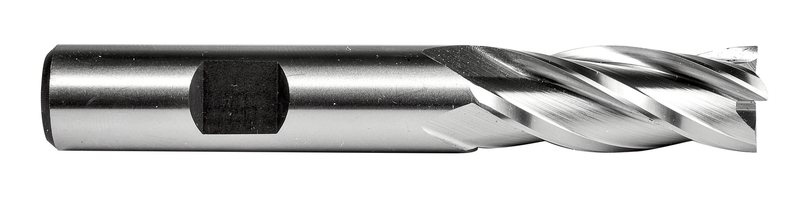

Fraise en bout de longueur normale à 4 cannelures, diamètre 3/8" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", selon la norme ANSI avec une tige Weldon de 3/8", HSS à finition brillante, hélice à 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier au carbone à usinage libre et ordinaire et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6153/8
GradeLumineux
Product Number7647977
Product FamilyC615
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647977
EAN7320760844922
File Type Download

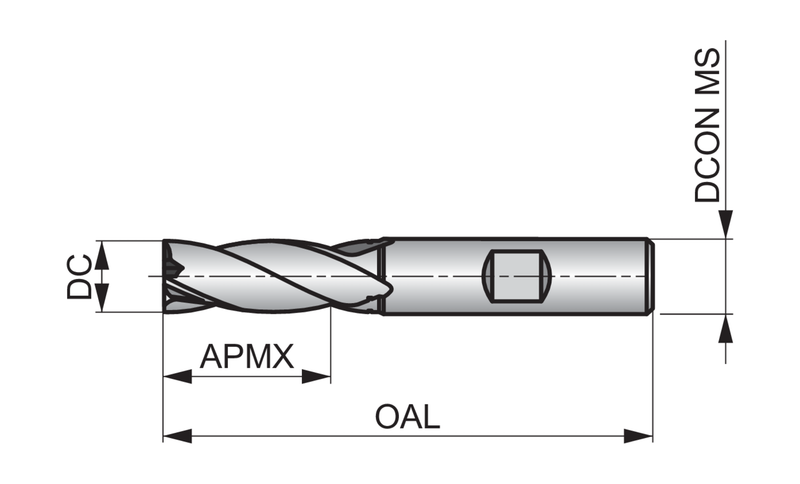

C6153/8 — Line Drawing PDF Download
