C6155/8
C6155/8

C6155/8

UGC DOR7647979
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.90 CAD - $62.90 CAD
$62.90 CAD
$62.90 CAD - $62.90 CAD
$62.90 CAD

Vendu en lots de : 1

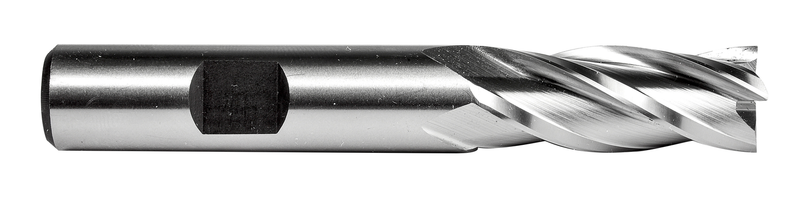

Fraise en bout de longueur standard à 4 dents, diamètre 5/8" avec une longueur de coupe de 1,5/8" et une longueur totale de 3,3/4", selon la norme ANSI avec une queue Weldon de 5/8", HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier au carbone à usinabilité libre et ordinaire et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6155/8
GradeLumineux
Product Number7647979
Product FamilyC615
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — mm (OAL)95.25 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647979
EAN7320760844946
File Type Download

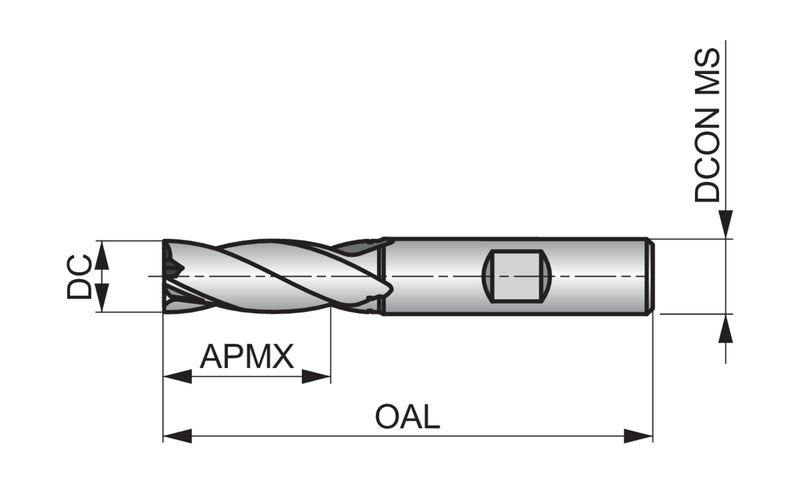

C6155/8 — Line Drawing PDF Download
