C6153/4
C6153/4

C6153/4

UGC DOR7647981
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

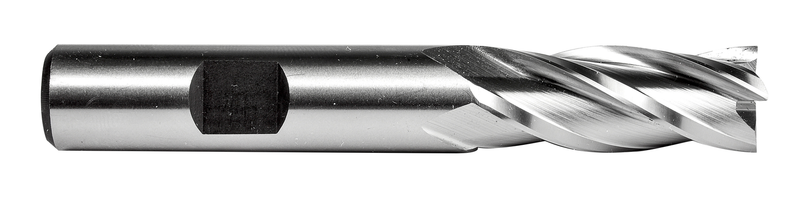

Fraise en bout de longueur standard à 4 dents, diamètre 3/4" avec une longueur de coupe de 1,5/8" et une longueur totale de 3,7/8", conforme à la norme ANSI avec une queue Weldon de 3/4", en HSS avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6153/4
GradeLumineux
Product Number7647981
Product FamilyC615
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — mm (OAL)98.43 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647981
EAN7320760844960
File Type Download

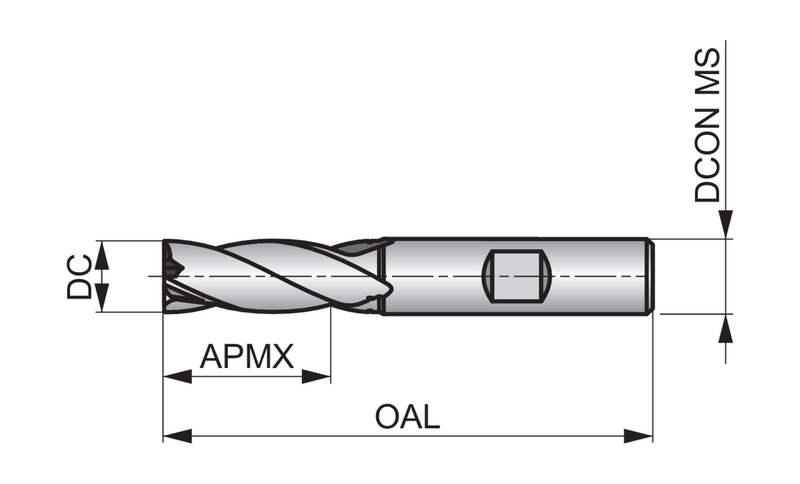

C6153/4 — Line Drawing PDF Download
