C6157/8
C6157/8

C6157/8

UGC DOR7647982
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.56 CAD - $93.56 CAD
$93.56 CAD
$93.56 CAD - $93.56 CAD
$93.56 CAD

Vendu en lots de : 1

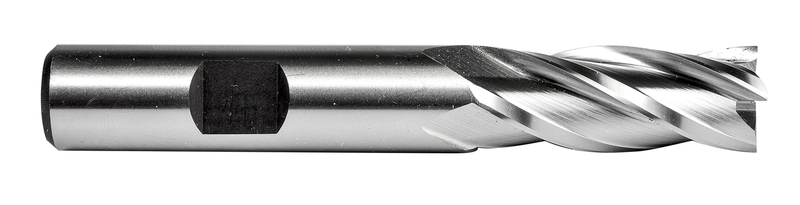

Fraise en bout de longueur normale à 4 cannelures, diamètre 7/8" avec une longueur de coupe de 1.7/8" et une longueur totale de 4.1/8", selon la norme ANSI avec une queue Weldon de 7/8", en acier rapide avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage en pente dans les aciers à usinage facile et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6157/8
GradeLumineux
Product Number7647982
Product FamilyC615
Insert Geometry
Depth of Cut Max — mm (APMX)47.63 mm
Dimensions
Cutting Diameter — in (DC)0.875"
Cutting Diameter — mm (DC)22.23 mm
Cutting Diameter — Fractional7/8
Overall Length — mm (OAL)104.78 mm
Connection Dia. — in (DCON)0.875"
Connection Dia. — mm (DCON)22.23 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7647982
EAN7320760844977
File Type Download

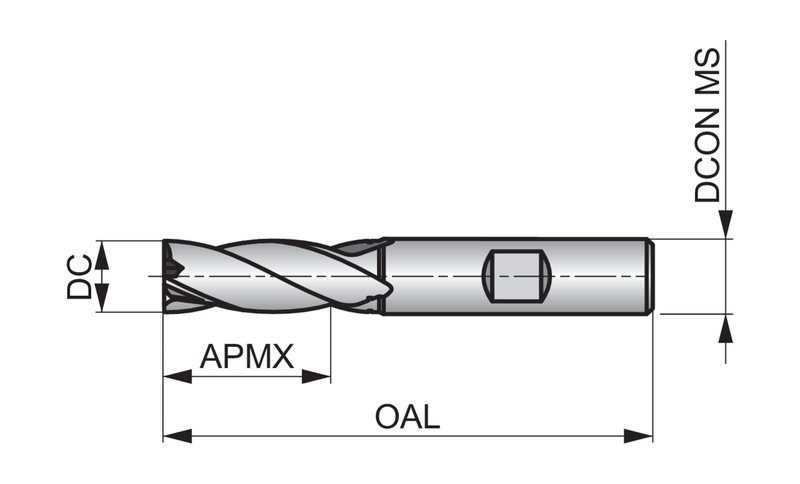

C6157/8 — Line Drawing PDF Download
